Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller

$110.00

Add to Cart:

Description
Details
Reviews

Features
Sunnysky X125A PRO 3-8S Brushless Electric
Speed Controller for FPV Drones
Excellent quality starts from the core
Equipped with a high-performance 32-bit processor,
running at a frequency of up to 170MHz, offering
powerful computational capabilities and fast
operation speeds. The power output components（MOSFET）
utilize next-generation manufacturing technology,
providing low heat generation, high instantaneous
current handling capacity, and excellent reliability.
Product Details
Model：Sunnysky 125A PRO SBEC
Power Wire Specifications：10#150mm(red x1/black x1)
Motor Wire Specifications：10#150mm(black x3)
Connector：/
Ground Wire：/
Continuous Output Current：125A
Peak Output Current (Momentary)：150A
Number of Cells：3-8S LiPo
CPU Frequency：170MHz
Telemetry Function：support
Speed Regulation Function：support
Software Upgrade Capability：support
Anti-spark Function：nothing
ESC Weight：Including fan：180g Excluding fan：170g
ESC Dimensions：Including fan：81x37x36.3mm Excluding fan：81x37x23.8mm

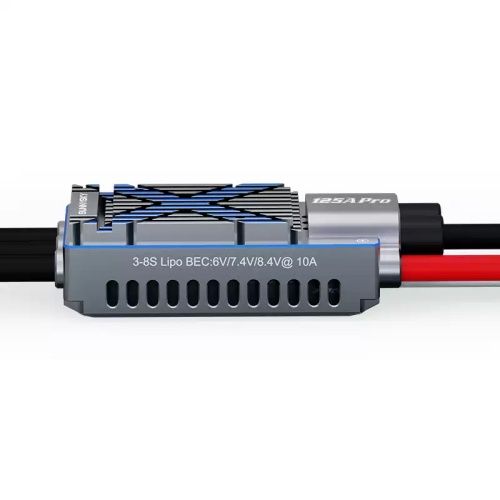

BEC Output：6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function：LCD programming card G2/Android&Apple APP
Signal Wire Specifications：60C 490mm black, red, yellow 3pin two
JR Connector；60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications：30C 500mm yellow 1pin both ends
JR Connector；30C 500mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
Item Packing
Sunnysky 105A PRO ESC x1
X125A-PRO-ESC
Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones
