Home Multi Rotor Products & Parts ESC Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor

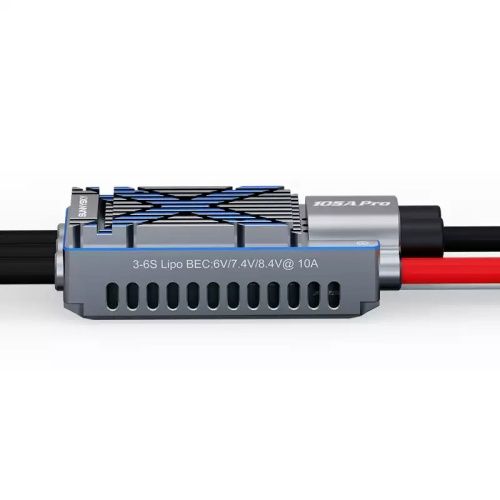

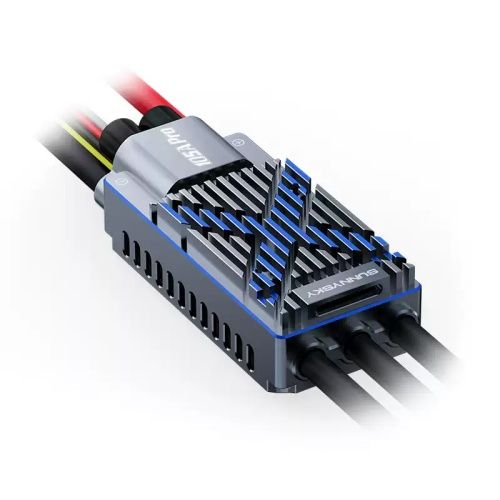

Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor

$99.99

Add to Cart:

Description
Details
Reviews

Features
Excellent quality starts from the core
Equipped with a high-performance 32-bit processor, running at a
frequency of up to 170MHz, offering powerful computational
capabilities and fast operation speeds. The power output
components (MOSFET) utilize next-generation manufacturing
technology, providing low heat generation, high instantaneous
current handling capacity, and excellent reliability.
Product Details
Model：Sunnysky 105A PRO SBEC
Power Wire Specifications：12#150mm(red x1/black x1)
Motor Wire Specifications：12#150mm(black x3)
Connector：/
Ground Wire：/
Continuous Output Current：105A
Peak Output Current (Momentary)：120A
Number of Cells：3-6S LiPo
CPU Frequency：170MHz
Telemetry Function：support
Speed Regulation Function：support
Software Upgrade Capability：support
Anti-spark Function：nothing
ESC Weight：Including fan：157g Excluding fan：148g
ESC Dimensions：Including fan：81x37x35.3mm Excluding fan：81x37x22.8mm
BEC Output：6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function：LCD programming card G2/Android & Apple APP
Signal Wire Specifications：60C 490mm black, red, yellow 3pin two JR
Connector；60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications：30C 400mm yellow 1pin both ends
JR Connector；30C 400mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
Item Packing
Sunnysky 105A PRO ESC x1
X105A-PRO-ESC
Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor for UAV FPV
