MATEK MR900-30-TX MLRS MAVLINK 900MHZ TX Module Kit
for Long Range RC Drone
Product Details
Model：MR900-30
STM32G431KB, mLRS firmware
LoRa SX1262 with TCXO
RF Frequency: 900MHz (868MHz, 915MHz FCC)
915MHz RF power: 21dBm(min) / 22dBm / 24dBm / 27dBm / 30dBm(1000mW)
868MHz RF power: 24dBm(min) / 24dBm / 24dBm / 27dBm / 30dBm(1000mW)
Antenna connector: IPEX MHF-1 to SMA

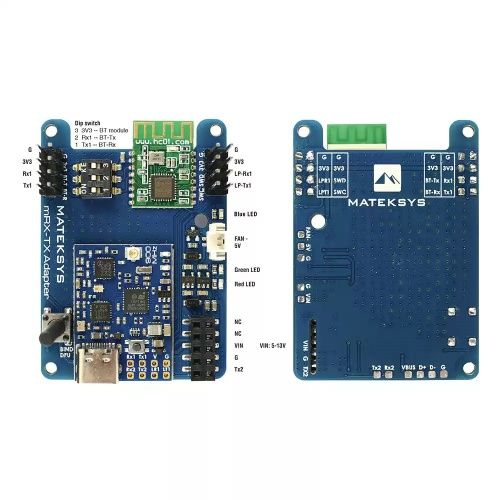

mRx-Tx Adapter

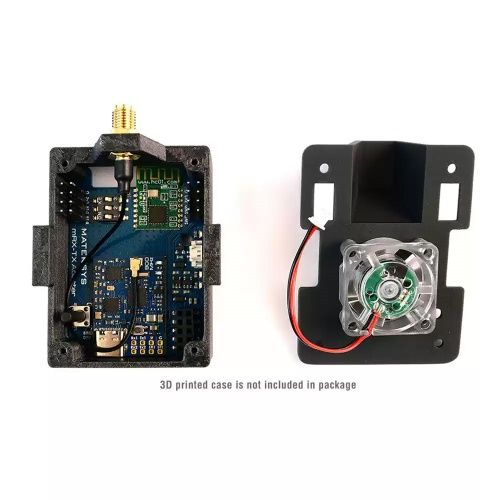

Built-in 5V fan controller
unning if output power>=500mW
TX2: RC IN(CRSF)
Power supply: 5-13V DC @ JR_PIN3 (VIN)

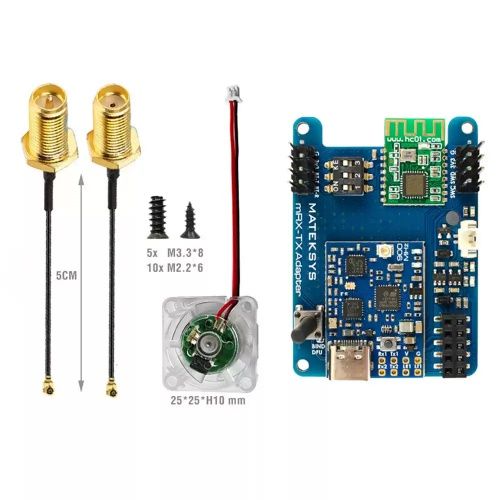

Item Packing
3
MR900-30-TX
