long-range VTOL UAV flight time 3 hours and 20 minutes with 1.2k

• Description
• Details
• Reviews

Features
Carbon fiber VTOL UAV flight platform 3.3kg, fixed-wing UAV airframe

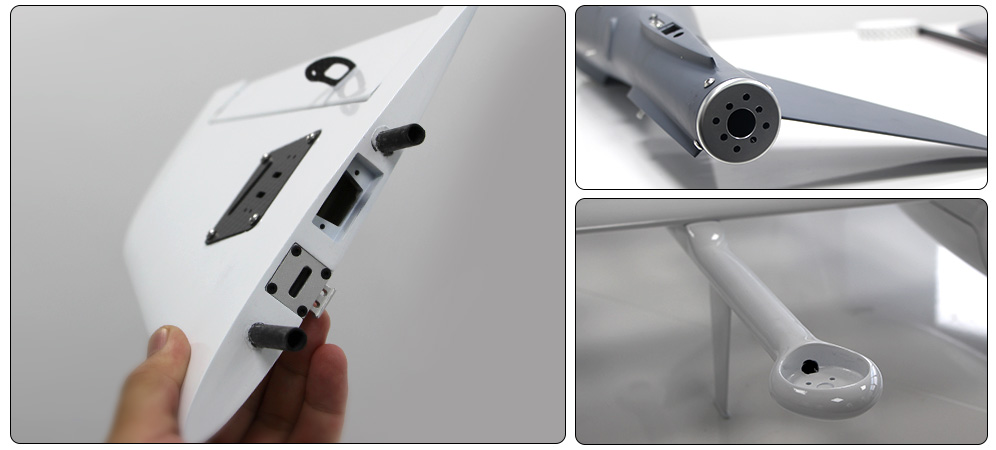

quick-detach technology on both airframe and cable connector
designed for long-range, GIS, security patrol, surveillance,
search-rescue, survey-mapping applications. GIMBAL Payload available
range 3 hours and 20 minutes 1.2kg payload.
Product Details

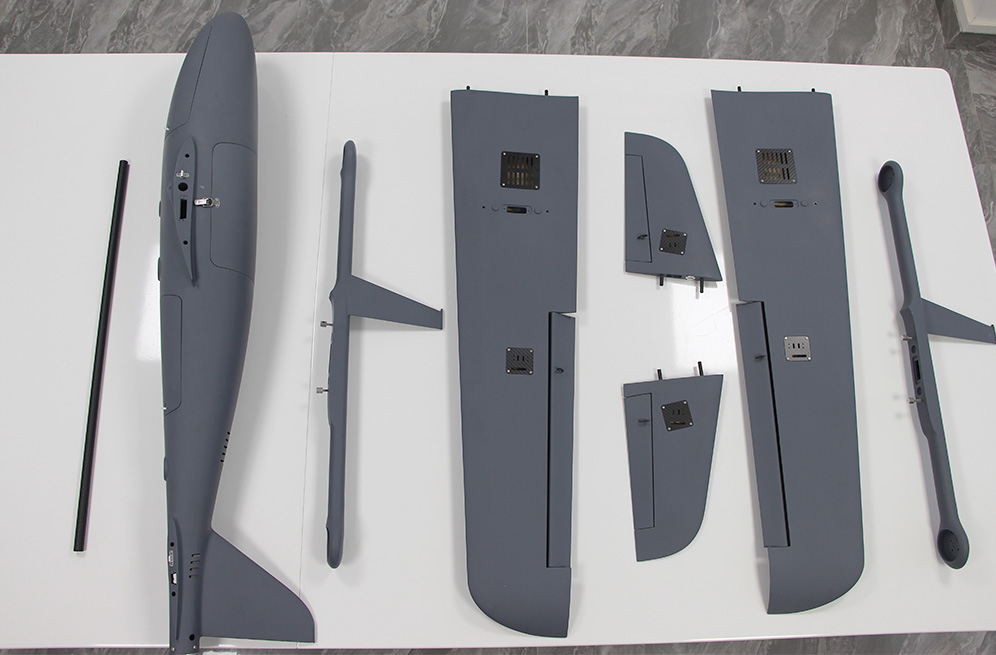

Airframe Only Includes
1 x Fuselage
1 x Left wing
1 x Right Wing
1 x Left motor arm with landing gear
1 x Right motor arm with landing gear
1 x Left tail
1 x Right tail

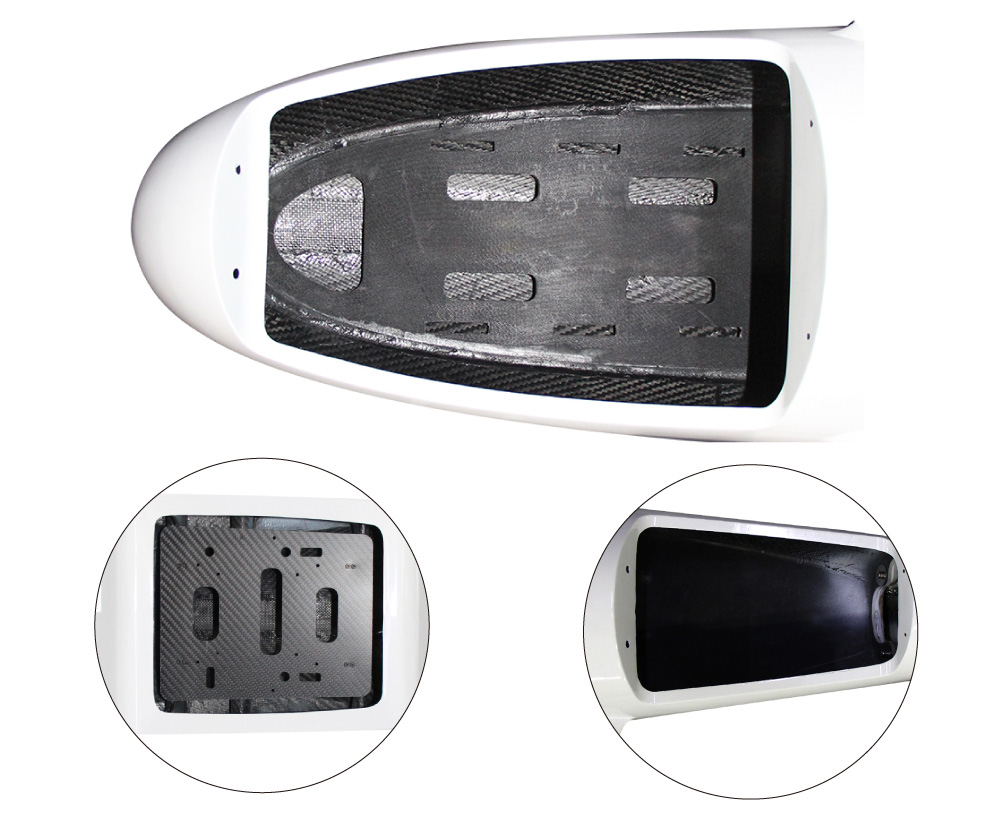

1 x Cargo bay
1 x Front cover
1 x Rear cover
1 x Quick-release plug and pin package

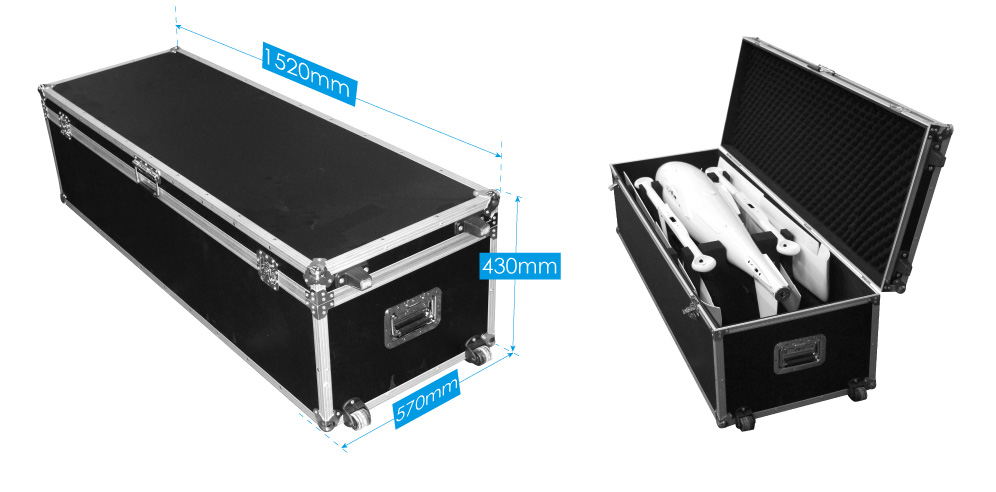

1 x Aviation box
Airframe With Propulsion System & Pixhawk RTF Includes $10K
1 x Fuselage
1 x Left wing
1 x Right Wing
1 x Left motor arm with landing gear
1 x Right motor arm with landing gear
1 x Left tail
1 x Right tail
1 x Cargo bay
1 x Front cover
1 x Rear cover
1 x Quick-release plug and pin package
4 x T-motor lift motor
1 x T-motor fixed-wing motor
4 x T-motor ESC for lift motor
1 x T-motor ESC for fixed-wing motor
2 x T-motor 1654 CF Propeller CW&CCW
1 x CF 17x12 Propeller CW
4 x KST Servo
1 x Wiring service
1 x Aviation box
1 x HEX Pixhawk 2.1 Cube Orange + Standard Set W/ here 3 GPS & ADS-B Carrier Board
1 x CUAV Rainproof Airspeed Sensor CAN Protocol Intelligence Deicing Dual Temperature Control System 1 x Hex Optical Flow Sensor Hereflow Fixed Height Indoor Position Module Integrated Lidar 6DIMU 1 x RFD900A 915Mhz 3DR Radio Telemetry Modem Module UAV 40KM Ultra Long Range Data Link Transmission 1 x HEX Mauch Sensor Hub X2 V2 PL/PC Series Power Module With CFK Enclosure 1 x Lightware SF11/C 120 Meter Laser Range Radar 1 x HEX Herelink V1.1 5.5in screen 2.4GHz 20KM Long Range HD Digital Video telemetry Transmission 2 x 6S Tattu 25000mAh 1 x SkyRC D100neo Smart Charger SK-100199 AC100W DC200W Smart Lipo Charger Items compatible (not included)
Compatible battery: 2 x 6S Tattu 25000mAh 6S 25C 22.8V High Voltage
Lipo Battery, or 2 x YANGDA Thunder Stone 30000mAh 22.2V 3C 6S1P Solid State Li-Ion Battery
Flight controller: Pixhawk Cube Orange, CUAV V5+, CUAV X7 and X7 Pro, AheadX Taurus 2, AheadX LEO 2
Avionics parts: Power Distribution Board, Orange Cube Carrier Board
Flight planning and control software: LAUNCH ground control software
Ground control station: ROCK GCS
Radio controller: YR16S Radio Controller
Long range HD video & data link: Videopass-N15(15KM range), Videopass-N30(30KM range)

• 100 Units in Stock
