Skydroid S1 PRO Electronic Control System1080P HD with H12PRO



$474.00

Add to Cart:


  • Description
  • Details
  • Reviews
Features
Skydroid S1 PRO Electronic Control System1080P HD
with H12PRO Remote, GPS & Three-in-one Camera Kit
Product Details

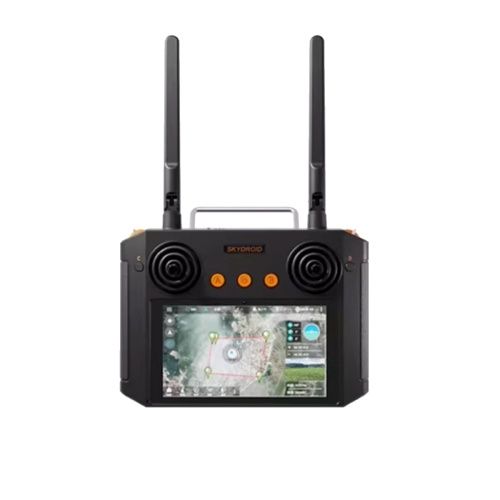

H12PRO Remote Control
Channel number：12
Operating voltage：4.2V
RF power：17.5dBm
Frequency band：2.400-2.483GHz
Frequency hopping：OFDM frequency hopping
Upgrade：APP online upgrade
Weight：660g
Size：190x152x94mm
Battery：10000mA/H
Battery life：6-20hours
Charging interface：TYPE-C
Modulation mode：CCK,DQPSK,DBPSK
Transmission rate：6.5-144Mbps

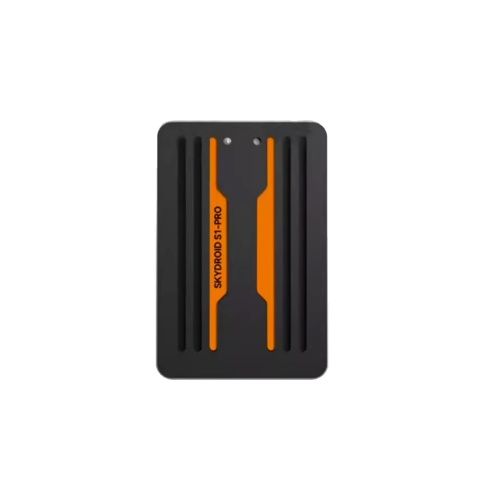

S1 PRO
Processor：STM32F407
Gyro：BMI088
Electronic compass：IST8310
Barometer：LPS22HB
Interface：GH1.25
Whip antenna：30cm/40cm/50cm Optional
PWM Output：12 OneShot/PWM Output(configurable)
Receiver：Built-in R12 PRO
Receiver Antenna Gain：4dBm
Receiver Transmit Power：17.5dBm
GPS：M10
RC OUT SBUS：1
GPS UART Serial Port：1
Power Port：1
LAN Port：1
CAN Port：1
Power Input Voltage：2s-18s USB Voltage：5V±0.3V Servo Voltage：5V±0.3V Working Temperature：-40~80°C
Size：68x47x13mm
Weight：62g

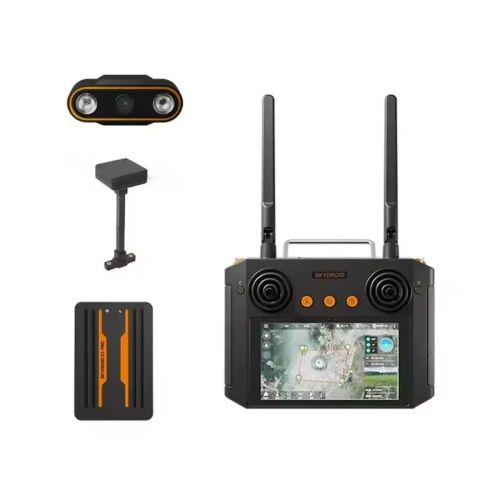

Item Packing
Skydroid H12PRO Remote Control x1
Skydroid S1 PRO x1
Skydroid GPS x1
Skydroid Three-in-one camera x1
S1PRO-COMBO
Skydroid S1 PRO Electronic Control System1080P HD with H12PRO Remote, GPS & Three-in-one Camera Kit
Skydroid S1 PRO Electronic Control System1080P HD with H12PRO Remote, GPS & Three-in-one Camera Kit
Skydroid S1 PRO Electronic Control System1080P HD with H12PRO Remote, GPS & Three-in-one Camera Kit
Skydroid S1 PRO Electronic Control System1080P HD with H12PRO Remote, GPS & Three-in-one Camera Kit
