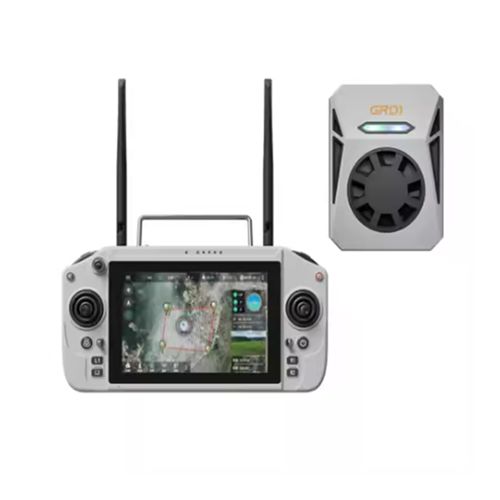

Skydroid G20 Remote Controller with GR01 Receiver 2.4GHz/5.8GHz

$600.00

Add to Cart:

Description
Details
Reviews

Features
Skydroid's unique digital image control link technology
enables the G20 to achieve a 30KM image transmission
and remote control distance. G20 is equipped with dual
frequency bands of 2.4GHz and 5.8GHz.It can automatically
switch according to the actual flight environment and
requirements to ensure the stability of the signal and
transmission efficiency, and further improve the
anti-interference ability of communication.
Product Details

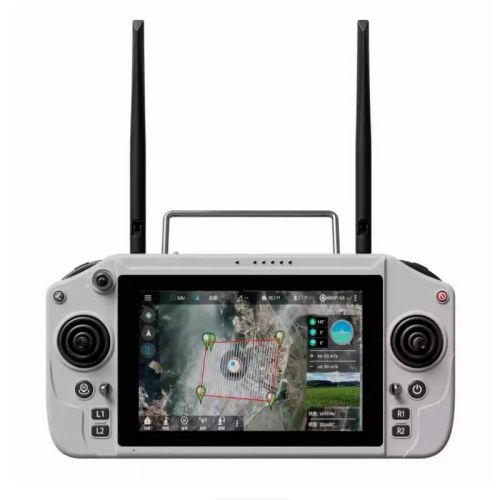

G20 Remote Control
Display：7 inch industrial touch screen + vision viewable screen
Resolution：1920*1200
Processor：Qualcomm 6nm processor
Computer Type：Android 13
Size：277(L)*138(W)*96(H)mm
Weight：1.2kg
Battery：20000mA/H
Endurance：6~8hours
Operating Memory：8G
System Storage Memory：128G
Operating Frequency Band：2.4G/5.8G
Channels Number：16
Dynamic FM：Automatic frequency hopping
RF Power：23dBm@CE/FCC
Remote Control Distance：5-30KM(ground-to-air, visual)
Operating Temperature：-10°C~55°C
Charging Interface：TYPE-C
External Interface：USB port, SIM card slot, TYPE - C
GR01 receiver
Frequency Band：2.4G/5.8G
Serial Baud Rate：57600/115200/921600
Supply Voltage：7.2 - 72V(XT30)
Operating Current：12V/300mA
Data Transmission Port：1 channel
Empty Port Rate：200Kbps~160Mbps
Network Port：1 channel
Dimension：45.5(L)*60(W)*21.5(H)mm
SBUS Output：1 channel
Weight：37g
PWM Interface：3 channels
Operating Temperature：-10°C~60°C
RF Power：23dBm@CE/FCC
Channel Bandwidth：1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz
