Home Transmitter & Receiver Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6 ExpressLRS

Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6 ExpressLRS

$240.00

Add to Cart:

Description
Details
Reviews

Features
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz
V6 Hall Gimbal Gemini Dual Band ExpressLRS for FPV Drone

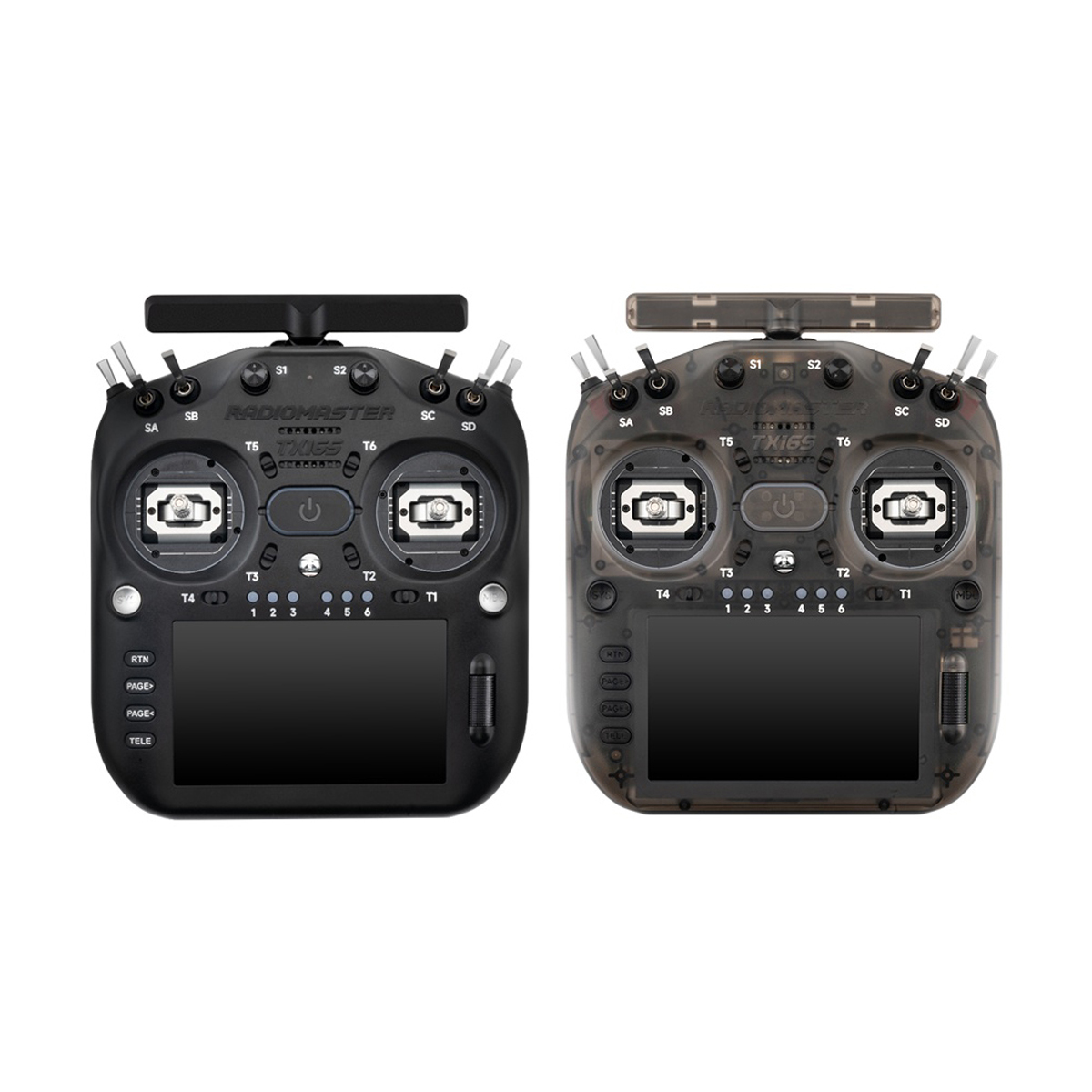

Color: Black, Transparent Charcoal
High-Performance MCU: Powered by the
STM32 H7 chip for maximum processing power.
Touchscreen Display: 5-inch, 800 x 480 IPS
touchscreen with vivid colors and sharp detail.
Precision Gimbals: V6 quad-bearing Hall sensor gimbals (AG02 compatible)
RGB Programmable Gimbal Light Rings:
LUA-controlled, customizable LED gimbal lighting.
Internal RF Module: Dual-band Gemini 2.4GHz and Sub-G 900MHz
Smart Balance Battery Circuit: Maximizes battery
efficiency and longevity for better battery life.
Powerful Cooling System: Low-noise, high-output fans and
an aluminum heat sink keep your radio cool, even on the hottest days.
Digital audio: Greater sound quality and reduced interference.
Dual Foldable Antennas: Compact and easy
to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Automatic back light adjustment:
Makes the screen easier to read indoors and out.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras,
or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory
and external MicroSD card support.
Removable shoulder switch panels: Customize
your setup with modular switch panels.
Product Details
Model: TX16S MK3 Radio Controller
Color: Black / Transparent Charcoal
Voltage Range: 6.6 – 8.4V DC
Working Current: 1.10A (at max RF output power)
Radio Firmware: EdgeTX (require 3.0.0 or higher)
Built-in RF Module: ExpressLRS 2 x LR1121
Frequency: ISM 2.4GHz and Sub-G 900MHz
Number of Channels: Up to 16ch
Gimbal: V6 Hall sensor gimbals (standard)

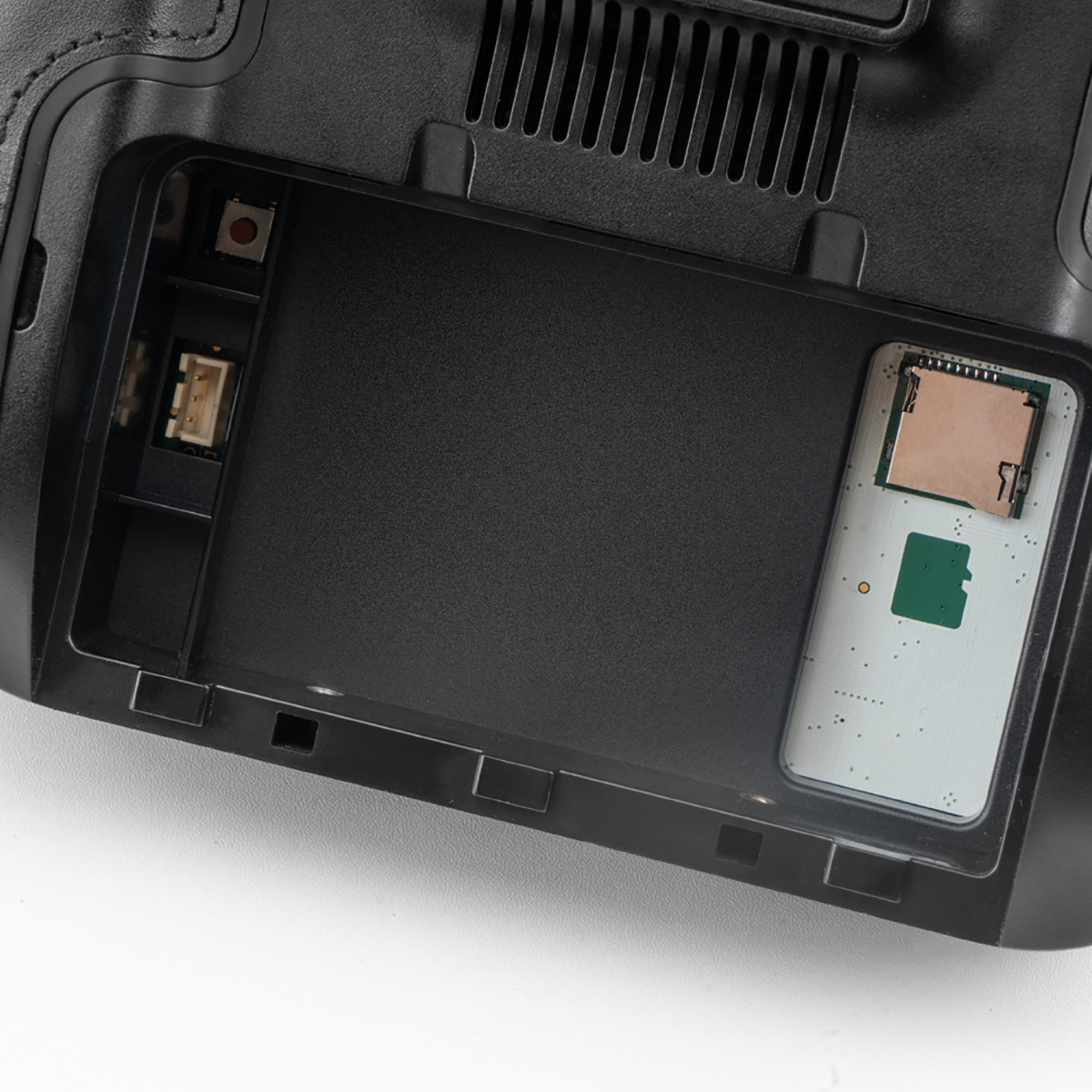

MicroSD Card Slot: Yes (card not included)
Internal Storage: Integrated 4GB of onboard flash memory
Display: 5-inch IPS touchscreen (800 X 480 resolution)
Battery: Two 3.7V 18650 Lithium-Ion cells / 21700 Li-ion 5000mAh Battery
/ 2S 7.4V 6200mAh Lipo (batteries not included)
Upgrade Method: USB / EdgeTX Companion PC software
Module Bay: JR-compatible module bay for additional modules
Dimensions: 200*178*88mm
Weight: 813g (without battery)
Radiomaster TX16S MK3 Radio Controller 2.4G 900MHz V6
