Features

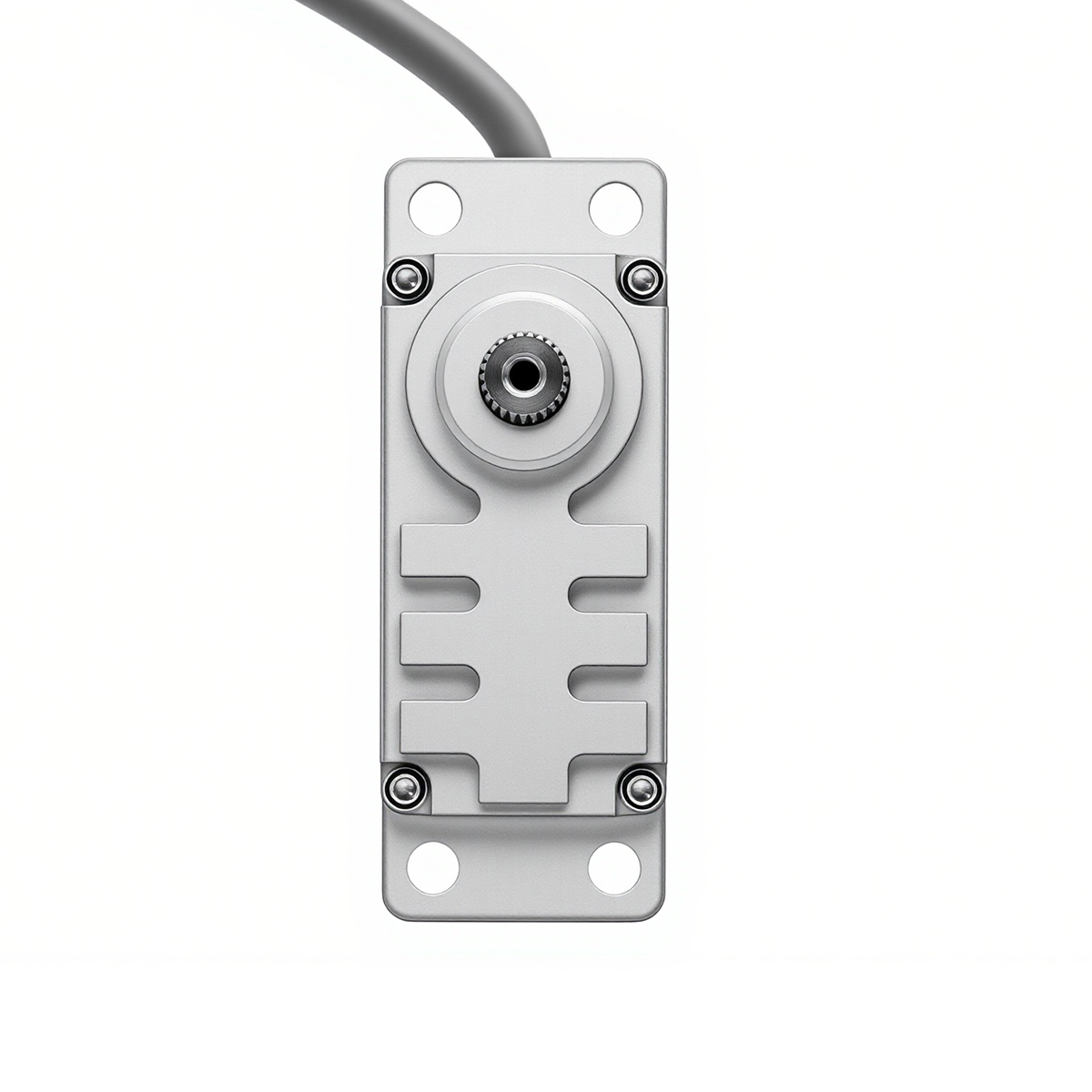

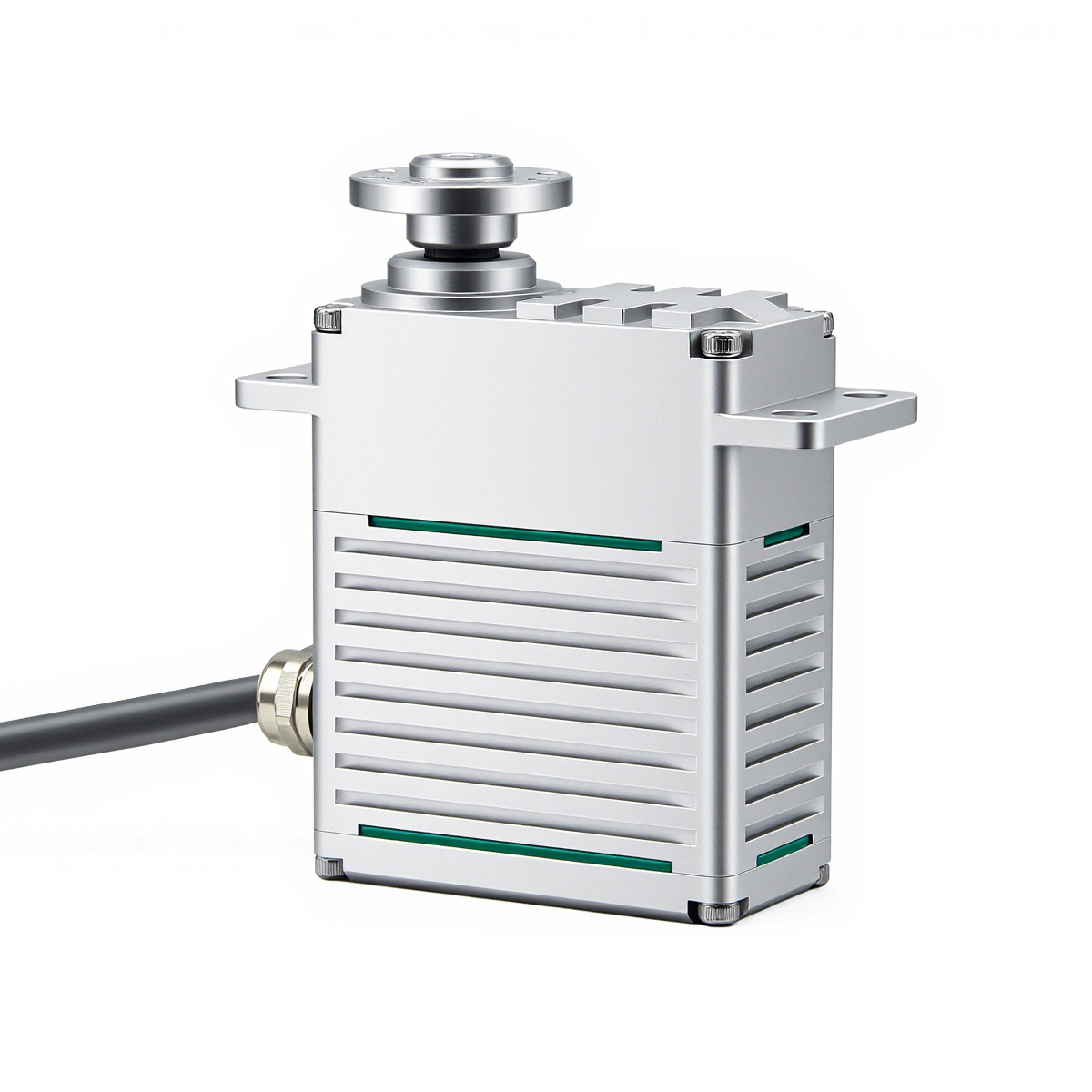

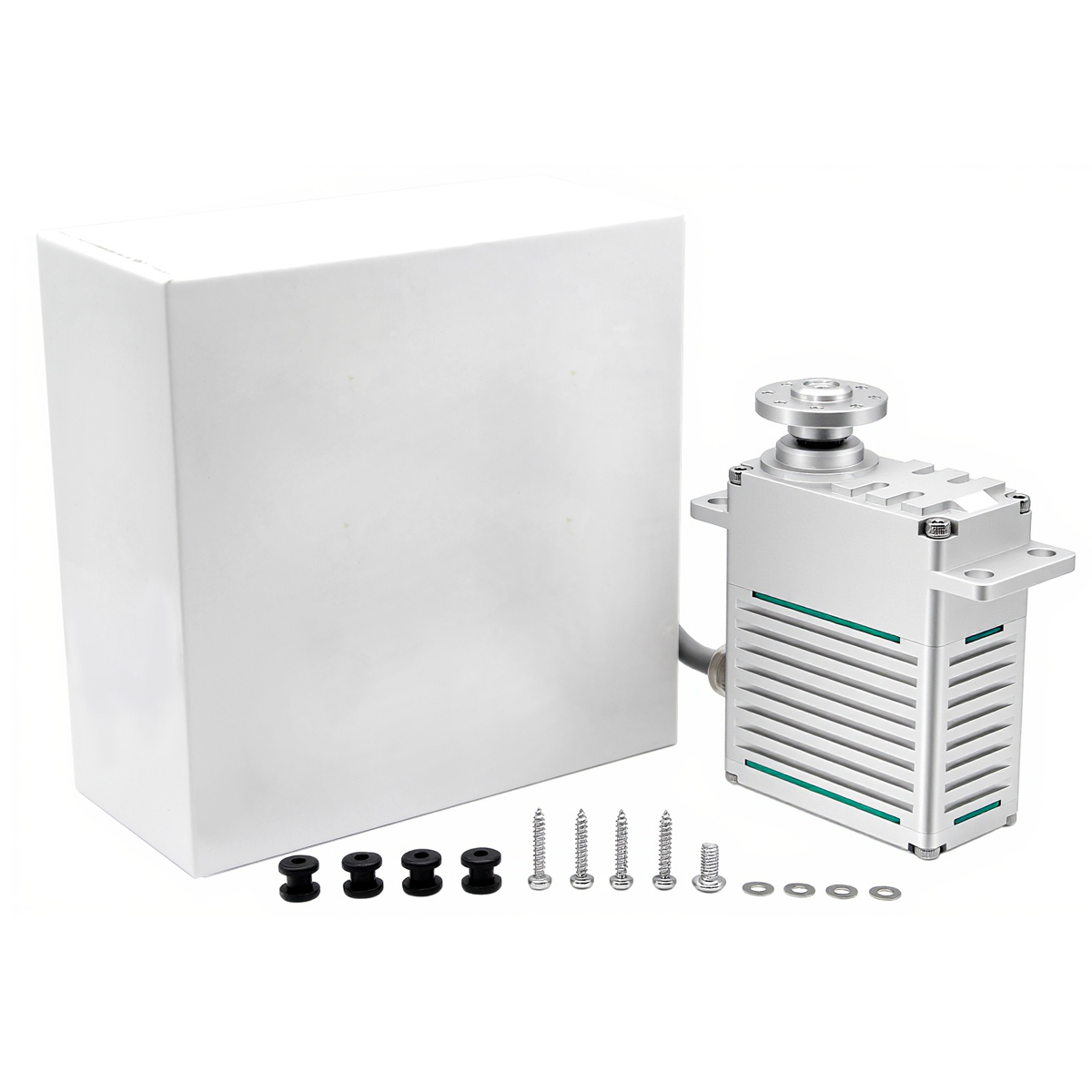

Feetech FT265BL 12V 265kg High Torque Steel Gear Aluminum
Case 180 Degree Brushless Motor Digital Servo
Product Details
Model: FT-265BL-C001
Storage Temperature Range: -40℃～80℃
Operating Temperature Range: -20℃～60℃
Size: 64*32.8*80mm
Weight: 440±5g
Gear Type: Steel
Limit Angle: No Limit
Bearing: Ball Bearings
Horn Gear Spline: 25T/9.8mm
Gear Ratio: 1/290
Case: Aluminum
Connector Wire: 430±10mm
Motor: Brushless Motor
Operating Voltage Range: 9V-14V
Idle Current (At Stopped): 20mA@12V
No Load Speed: 0.25sec/60°(40RPM)@12V
Running Current (At No Load): 260mA@12V
Peak Stall Torque: 265kg.cm@12V
Rated Torque: 88kg.cm@12V
Stall Current: 14.5A@24V
Command Signal: Pulse Width Modulation
Control System Type: Digital Comparator
Pulse Width Range: 500~2500μsec
Stop Position: 1500μsec
Running Degree: 180±2°(at 500→2500μsec)
Dead Band Width: ≤4μsec
Rotating Direction: Clockwise (at 1500→2000μsec)
