CUAV C-RID Drone Remote ID Broadcast Module DroneCAN UART

• Description
• Details
• Reviews

Features

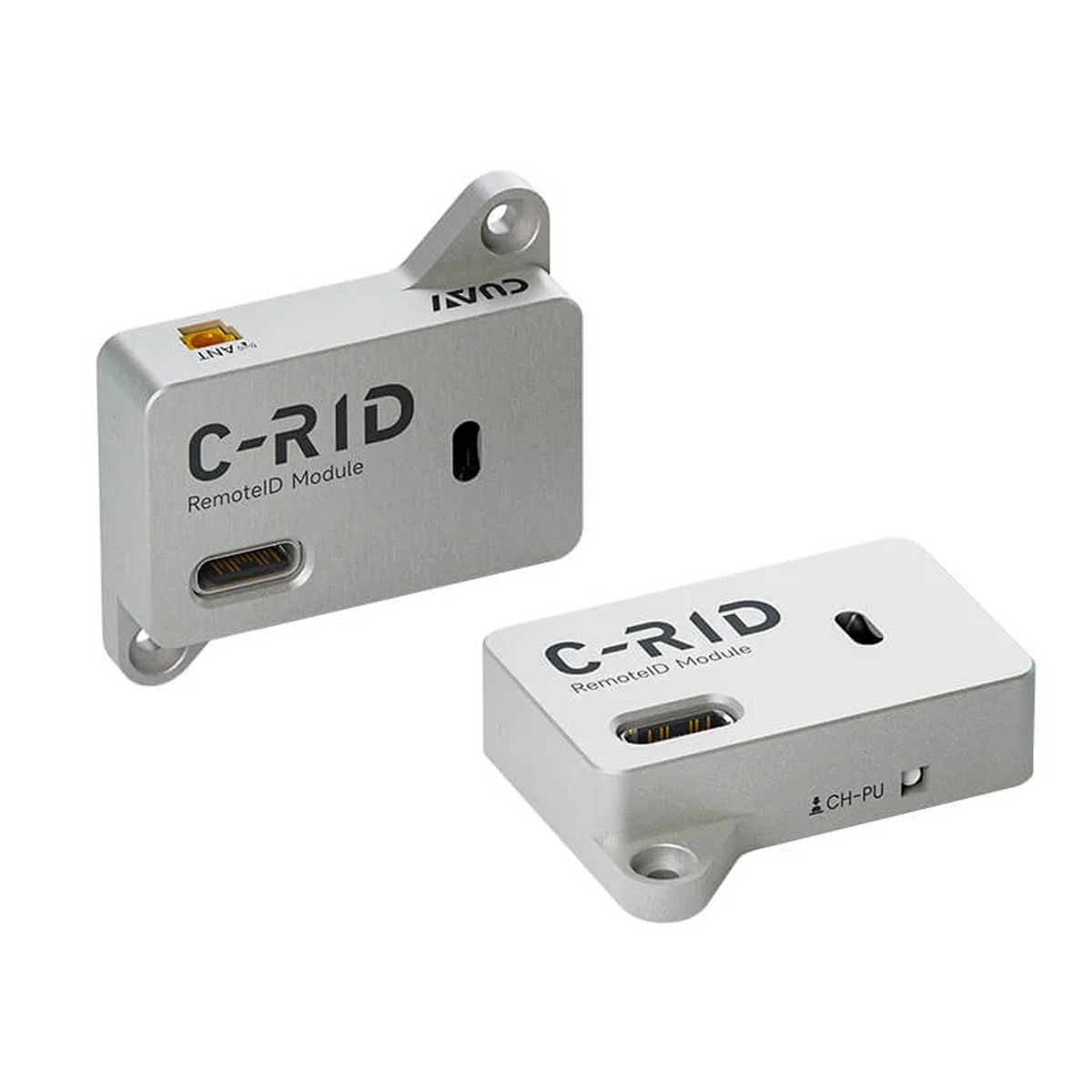

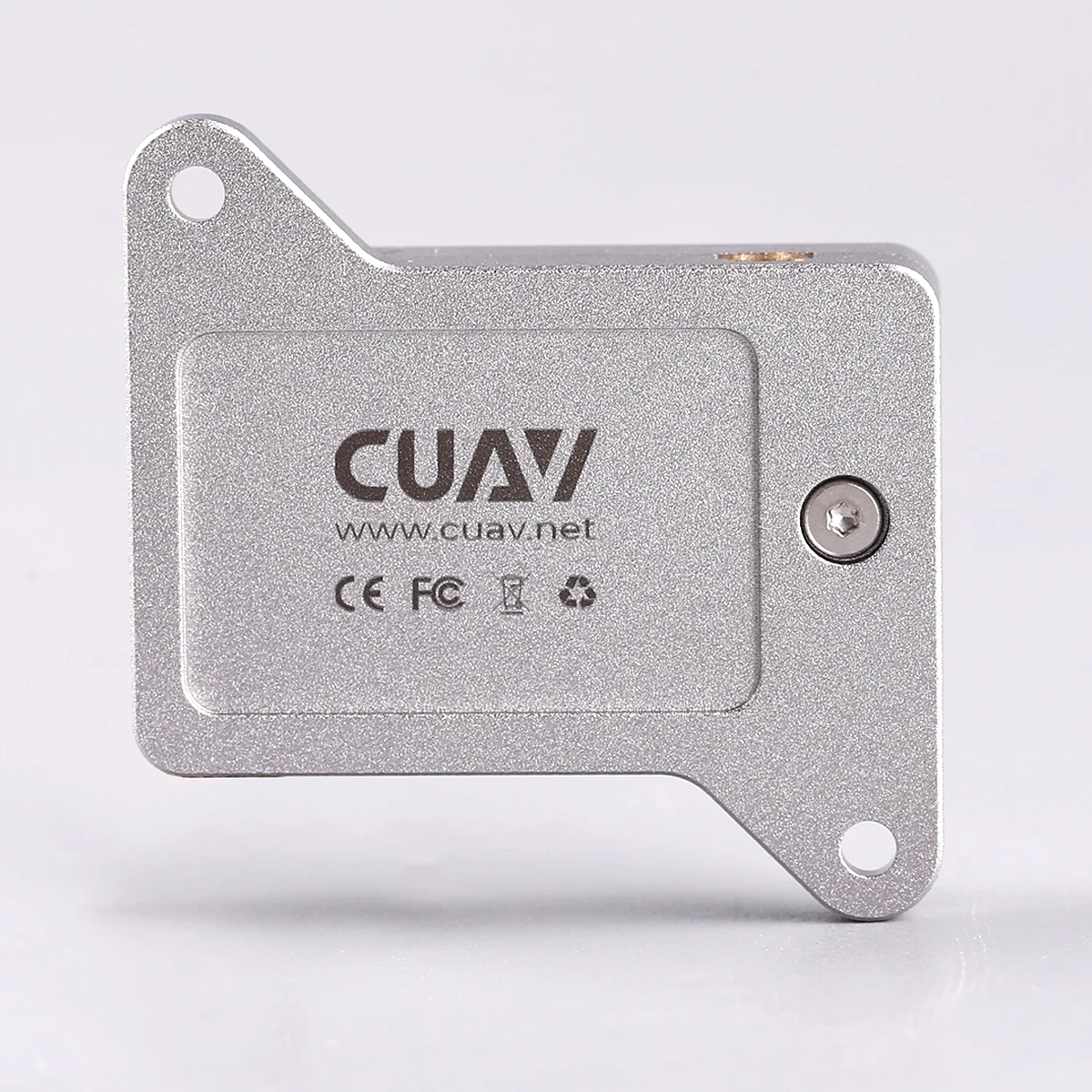

CUAV C-RID Drone Remote ID Broadcast Module DroneCAN
UART Dual Interface for UAV FPV Racing Quadcopter
Identification Code for Compliant Products ofDrones
Domestic Dual-Core MCU Break through Performance Boundaries
Long-Range Broadcast, Wider Coverage
Lightweight Design, Compact Size
Support DroneCAN Bus and UART Serial Communication
Cooperate with LGC to Setand Analyze Broadcast Data
Security Reinforcement and Defense Enhancement
ArduRemotelD Standard Hardware Compatible with ArduPilot and PX

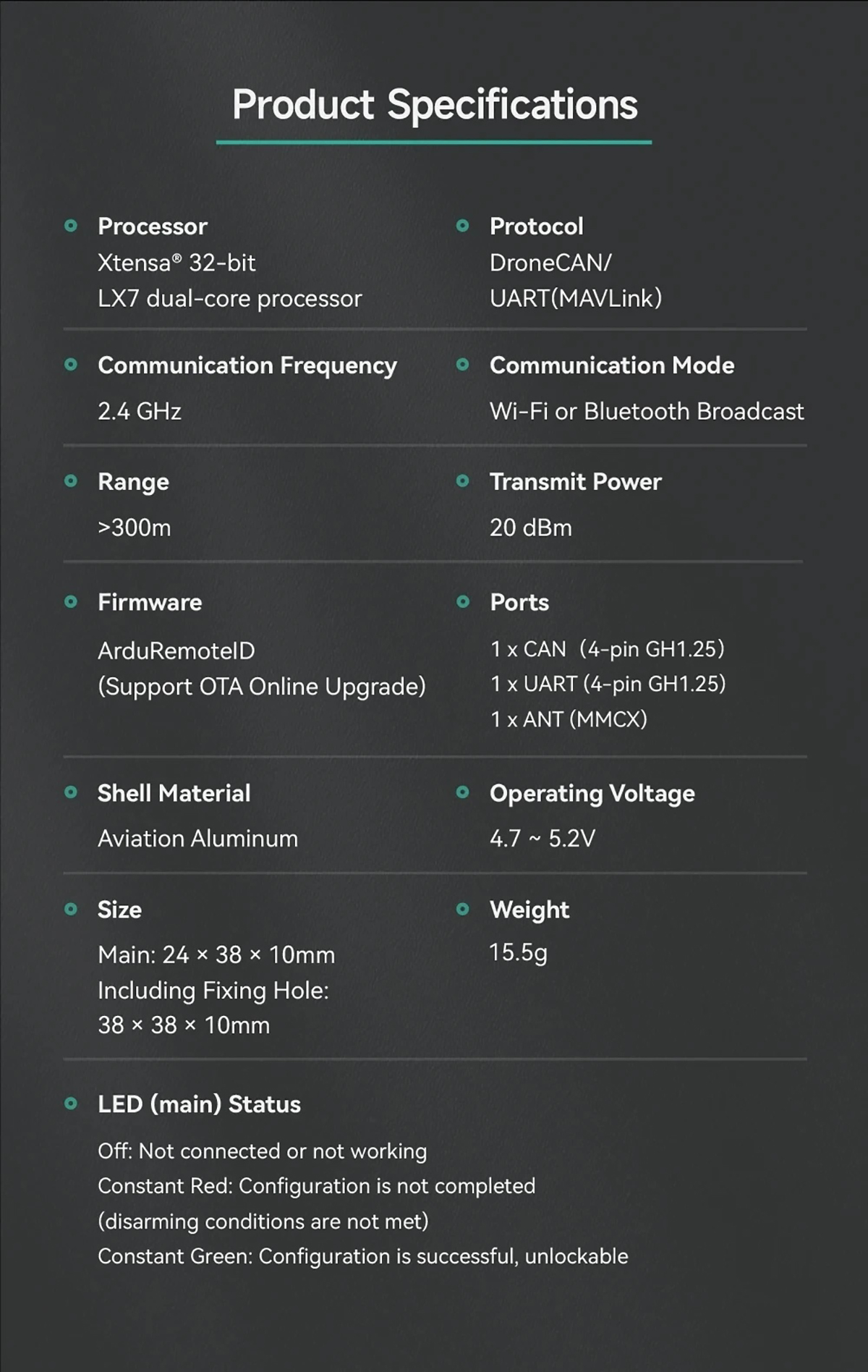

Product Details
Model: Xtensa 32-Bit LX7 Dual-Core Processor
Protocol: DroneCAN/UART(MAVLink)
Communication Frequency: 2.4GHz
Range: >300m
Transmit Power: 20dBm
Firmware: ArduRemotelD (Support OTA Online Upgrade)

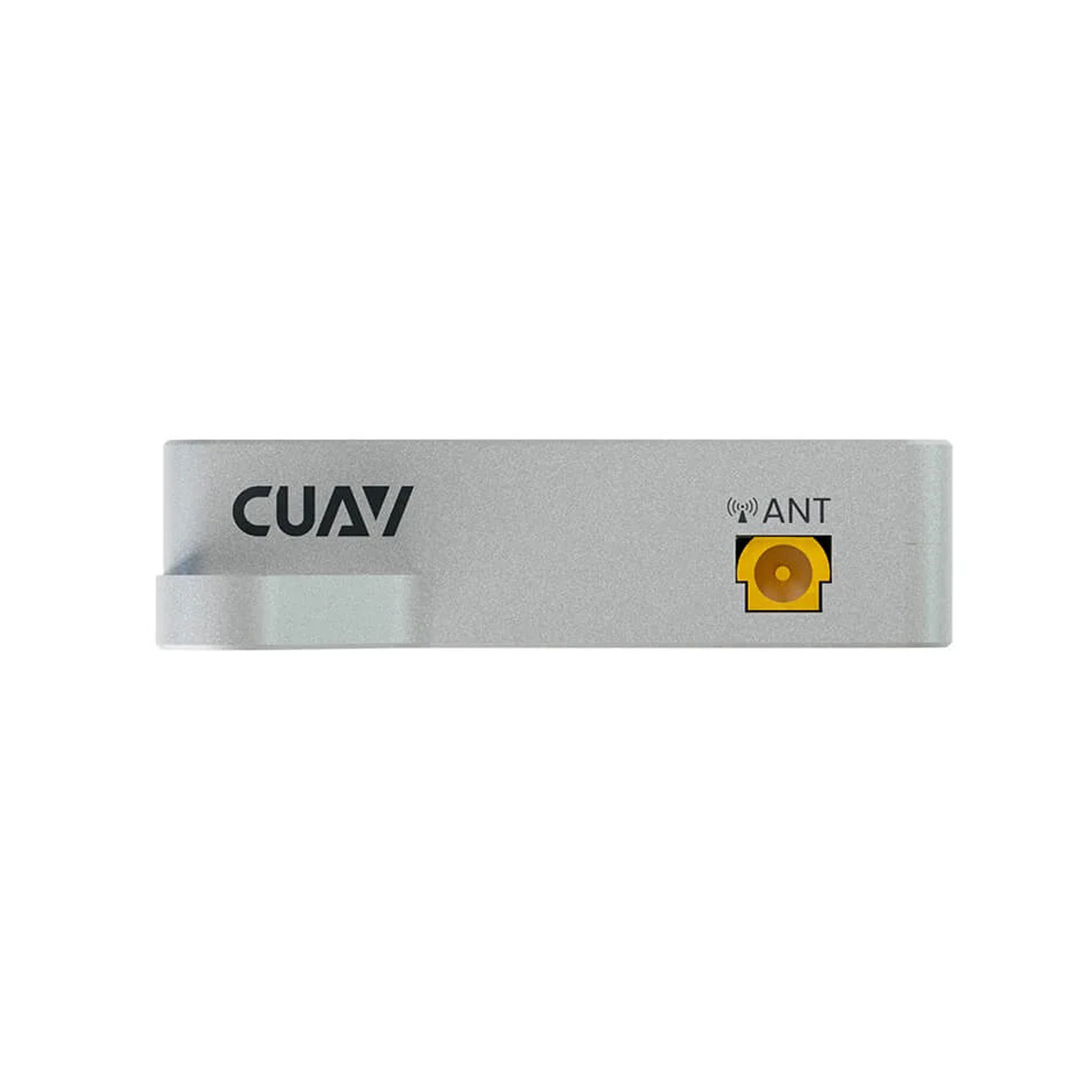

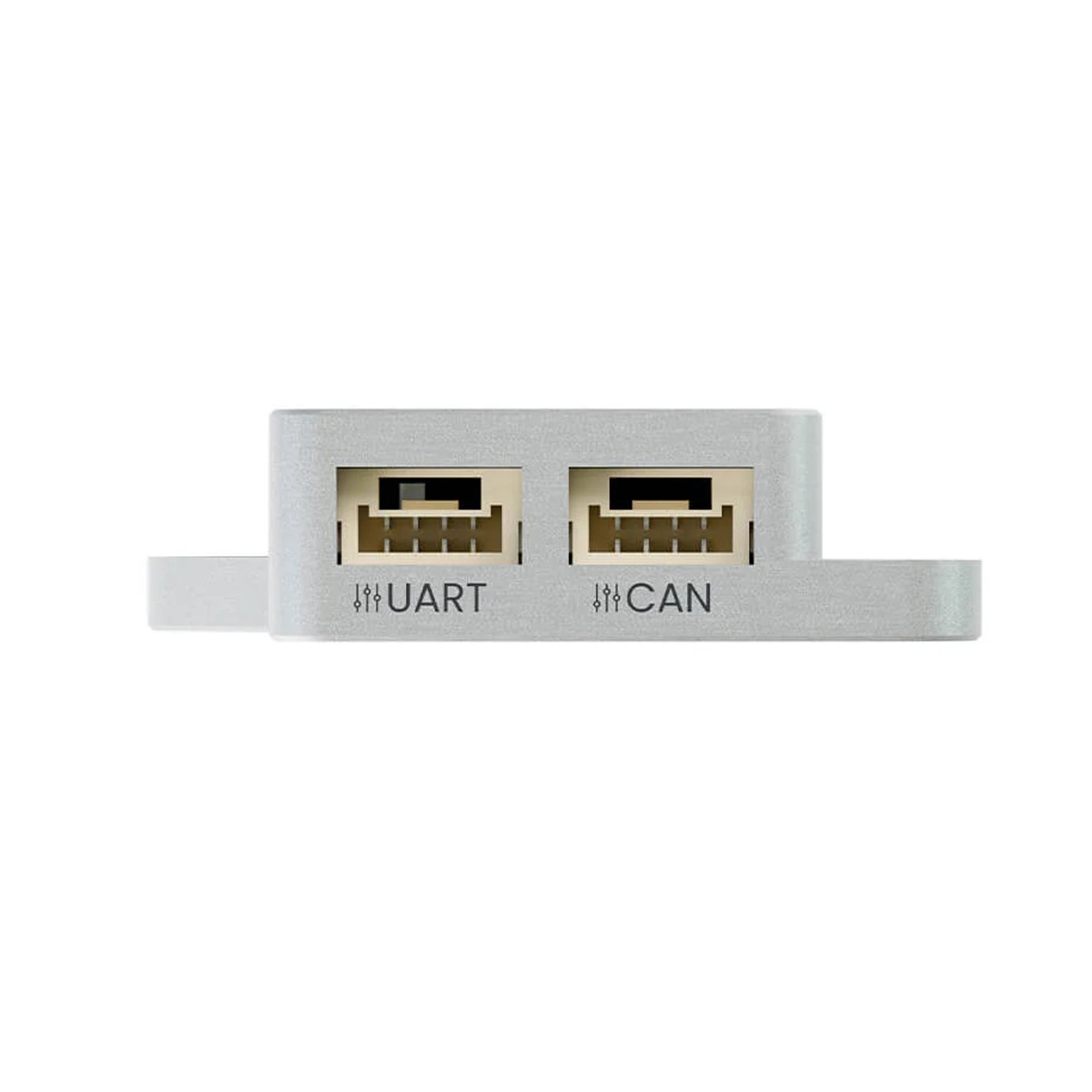

Ports: 1 x CAN (4-Pin GH1.25), 1 x UART (4-Pin GH1.25), 1 x ANT(MMCX)
Shell Material: Aviation Aluminum
Operating Voltage: 4.7～5.2V

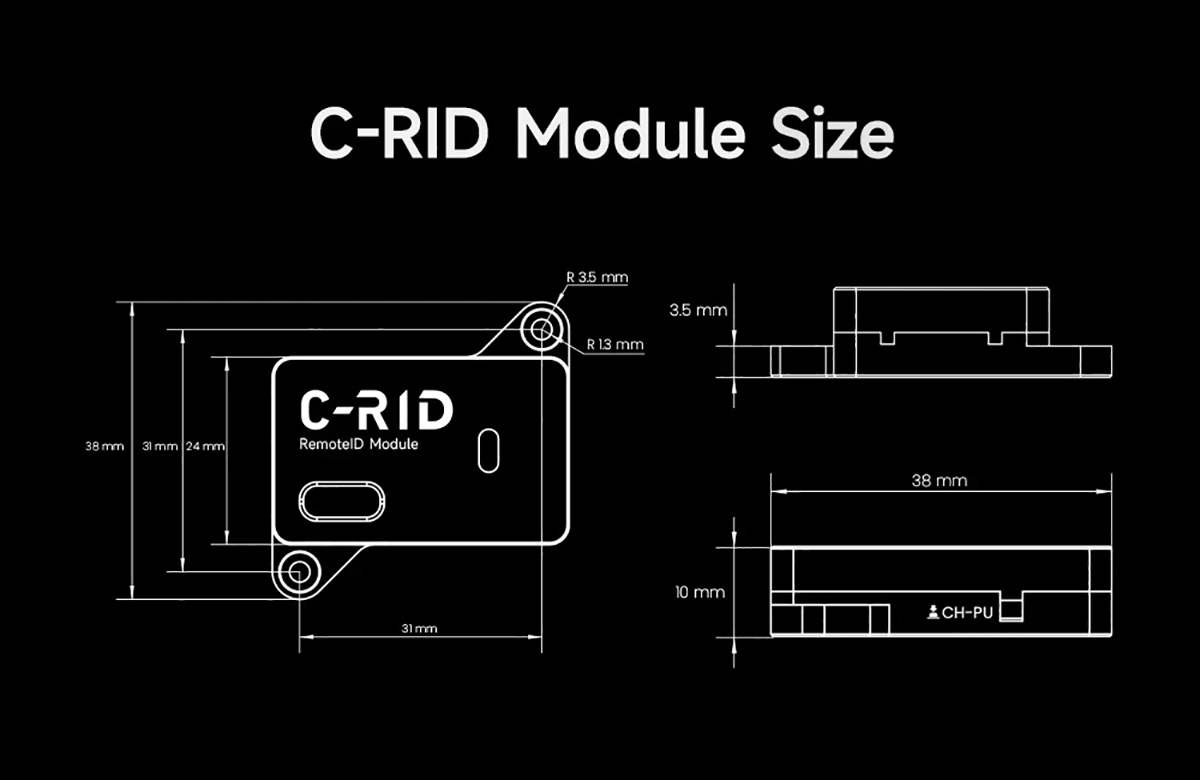

Size: Main: 24×38x10mm; Including Fixing Hole: 38x38x10mm
Weight: 15.5g
LED (Main) Status:
Off: Not Connected Or Not Working
Constant Red: Configuration Is Not Completed(Disarming Conditions Are Not Met)
Constant Green: Configuration Is Successful, Unlockable

• 100 Units in Stock
