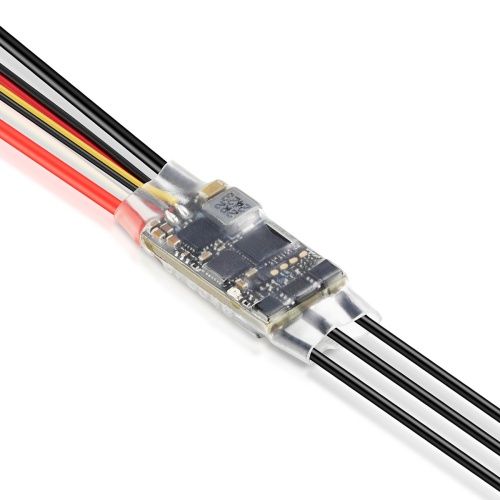

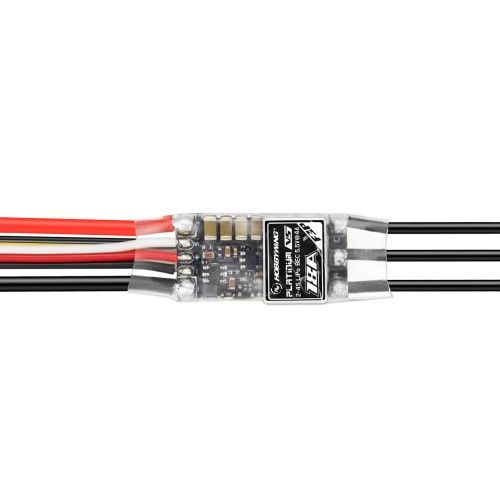

Hobbywing Platinum 18A V5 F3P Brushless ESC

$21.34

Add to Cart:

Description
Details
Reviews

Features
With superior design, the ESC is more compact and lightweight,
weighing less than 4g per unit.
Featuring a high-performance 32-bit MCU processor and robust
self-developed algo- rithm, the ESC delivers instantaneous
peak current up to 30A.
Ensuring rapid and smooth power output. This enables F3P aircraft
to effortlessly achieve high performance with unparalleled agility,
flexibility,and responsiveness.
Product Details
Model：Platinum 18A V5 F3P
Product Number：30202100
Brushed/Brushless：Brushless
High Voltage/Regular：Regular
Cont./Peak Current：18A/30A
Input Voltage：2-4S LiPo
BEC Output：Switch Mode：5.5V & Cont. 4A，Peak 6A
Input Wires：Red-18AWG-100mm*1/Black-18AWG-100mm*1
Output Wires：Black-20AWG-100mm*3
Input Connectors：No
Output Connectors：2.0mm Gold Connectors (Female)
Transmitter：Not Supported
LED Program Card：Not Supported
LED Program Box：Not Supported
LCD Program Box：Supported
OTA Programmer：Supported
Program Port：Separate Program Cable
Firmware Upgrade：Supported
Telemetry Function：Futaba S.Bus2; etc.
Size：24.6*12.8*7.5mm
Weight：11.9g (INCL wires)
Application：120g-320g F3P electric fixed-wing
Item Packing
1
PLATINUM-18A-V5
Hobbywing Platinum 18A V5 F3P Brushless ESC for F3P Fixed Wing Aircraft
