Tornado T7 4215 Motor N52H arc magnets Ultralight Motor

$65.00

Add to Cart:

Description
Details
Reviews

Features
High quality materials,Dual improvement of performance and quality
Titanium alloy shaft,Aviation grade 7075 AL caps, hard anodized caps,
Scraping slightly without trace. Hollow - carved design to save weight
and heat dissipation fleetly.
TU1 grade enamelled wire, high full slot ratio, low internal resistance.
Ultra - thin non - oriented silicon steel sheet, high permeability and low eddy loss.
N52h arc magnet, consistent air gap, stable magnetic circuit, linear torque.
Premium NMB bearings, can withstand greater axial load.
Product Details
Model：Tornado T7 4215 800KV
KV：800, 680, 520, 380, 260
Base casing：AI 7075

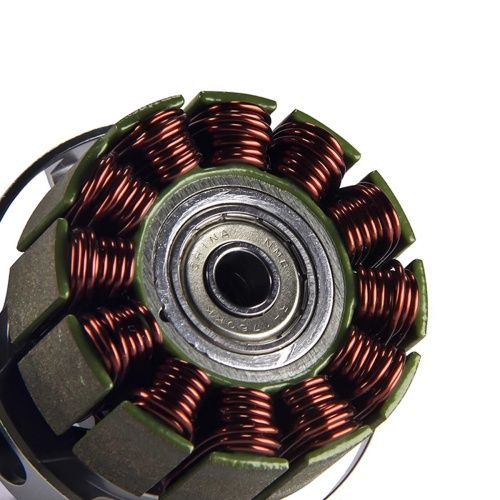

Stator：0.2mm Kawasaki silicon steel
Configuration：12N14P
Prop Adapter Shaft Thread：M6
Shaft：Titanium Alloy hollow shaft
No.of Cells(Lipo)：6-12S
Bolt Pattern：M4(30×30mm)
Bearings：Japanese NMB 17×6×6
Rotor：N52H arc Magnet
Weight：260g with 75cm SR wires
Wire AWG：14#,750mm Length
Bell cap：AI 7075
Item Packing
2
T7-4215-800KV, T7-4215-680KV, T7-4215-520KV, T7-4215-380KV, T7-4215-260KV
