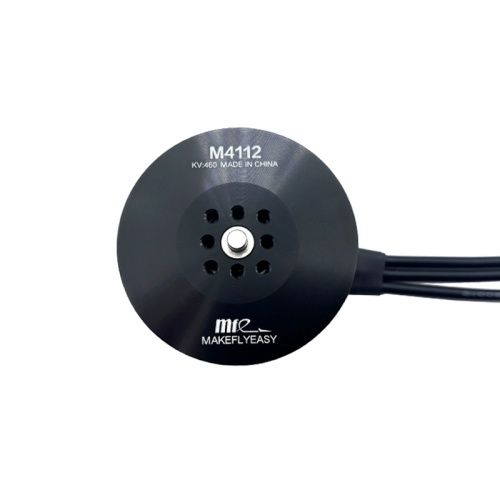

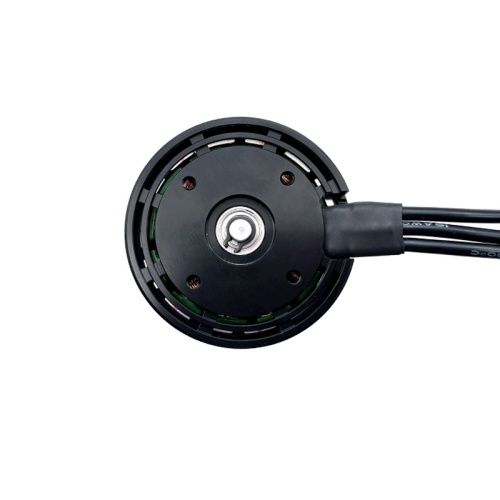

Makeflyeasy M4112 460KV Motor 12N14P 6S Lipo

$99.00

Add to Cart:

Description
Details
Reviews

Features
Makeflyeasy M4112 460KV Motor 12N14P 6S Lipo for Drones Accessories Product Details
Model：M4112
kv：460
Operating Rated Voltage：6S
No-load Current：1.1A/20V
Interphase Internal Resistance：113mΩ
Motor Weight：177g
Maximum Current：39A
Maximum Power：955W
Maximum Pull：4100g
Maximum Torque：1.2N*m
ESC Recommendation：50A
Propeller Recommendation：1555 Carbon Fiber Paddle
Slot-level Structure：12N14P
Stator Core：Imported Material/Surface Anti-rust
Motor Size：49.8×27mm
Enameled Wire Grade：Resistant to 180℃ high temps
Magnet Grade：Resistant to 180℃ high temps
Protection Grade：IP35
Wire Outlet Specification：100mm
Off-core Heat Dissipation Design：YES
Rotor Dynamic Balance Test：≤5 Mg
Wire Coil Withstand Voltage Test：500V AC
Propeller Mounting Hole Position：M3⊙12*4/M3⊙15*4
Motor Mounting Hole Position：M3⊙30*4
Item Packing
2
MFE-M4112-460
Makeflyeasy M4112 460KV Motor 12N14P 6S Lipo for Drones Accessories
