SKYZONE VT5850 6.2G 5W VTX Video Transmitter CNC Case LEDDisplay

• Description
• Details
• Reviews

Features

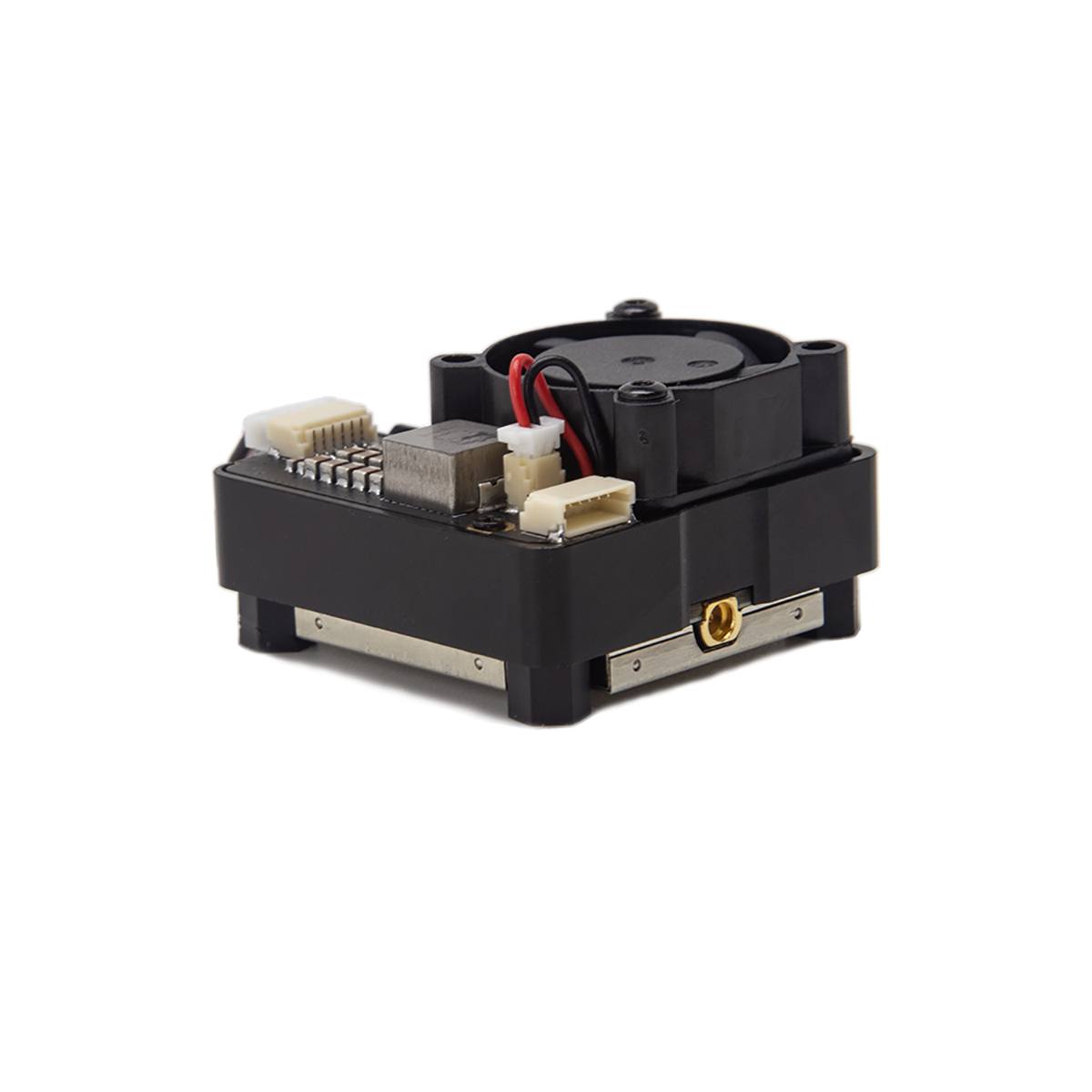

SKYZONE VT5850 6.2G 5W VTX Video Transmitter CNC Case
LED Segment Display for FPV Drone RC Airplane
The SKYZONE VT5850 4.9G/6.2G 5W VTX With CNC Case and
Fan delivers professional-grade video transmission for
competitive FPV racing and long-range applications.
Engineered with precision CNC construction, this
transmitter operates on the 6.2GHz frequency band,
offering excellent range and signal stability in
demanding environments.
Support S Band(6.2G Hz) and LOW Band
CNC Case dan Fan to dispatch heat
Two levels adjustable power output
7-36V Wide Range Voltage input
LED Segment Display, easy to check status of the VTX
Button/IRC control, fast to change the CH and Power
Allow use customized frequency 1Mhz by 1 Mhz from 4990~6184
Notice！：You can only choose one of the Button mode and
the IRC mode. If you use the button mode, you need to
turn off the IRC protocol in BF. The LED segment displays
the BAND/CH and power in sequence in the button mode,
and the frequency and power at IRC mode.

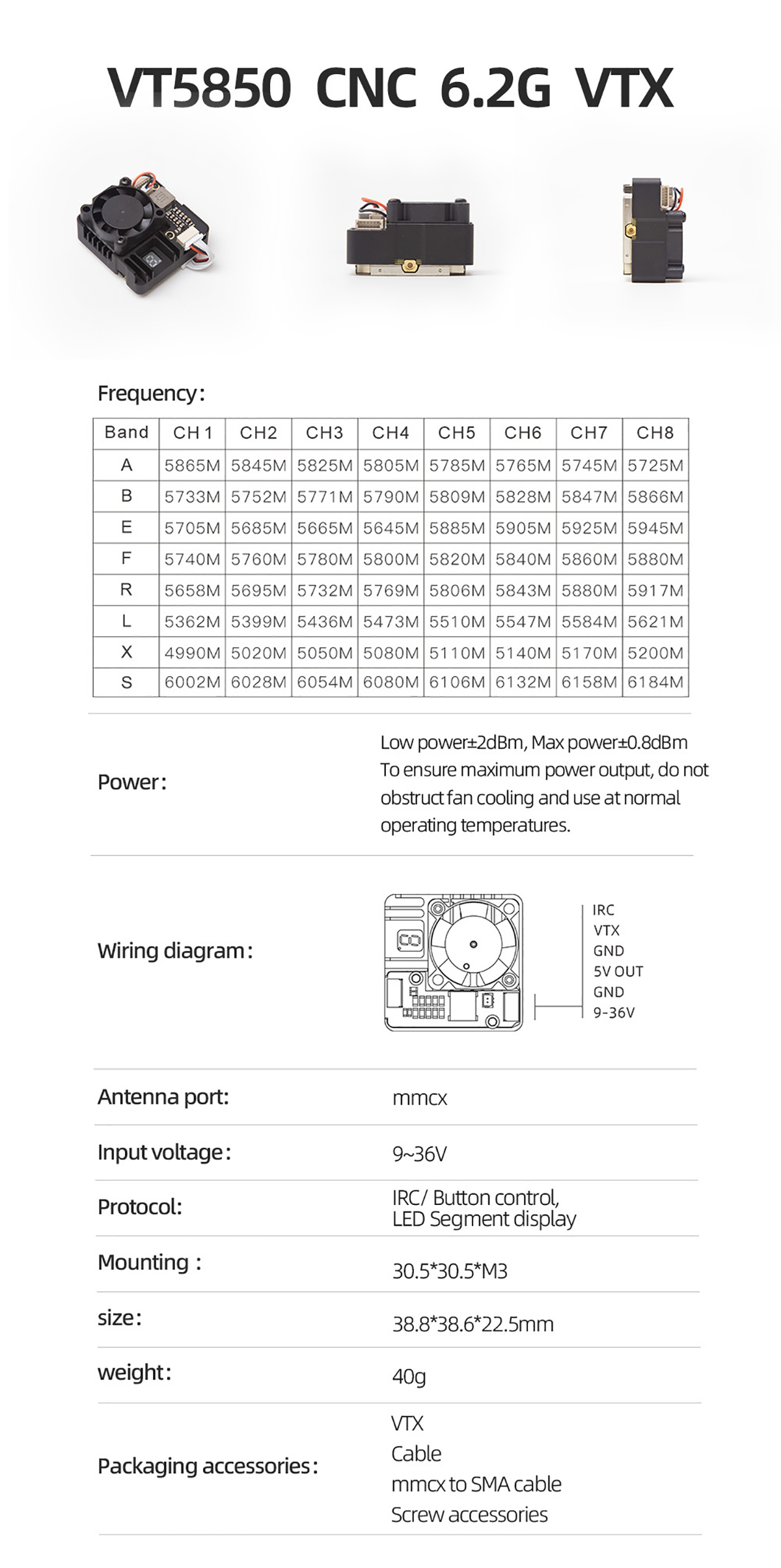

Product Details
Model: VT5850 CNC 6.2G 5W VTX
Antenna Port: mmcx
Input Voltage: 9~36V
Protocol: IRC/Button control, LED Segment display
Mounting: 30.5*30.5*M3

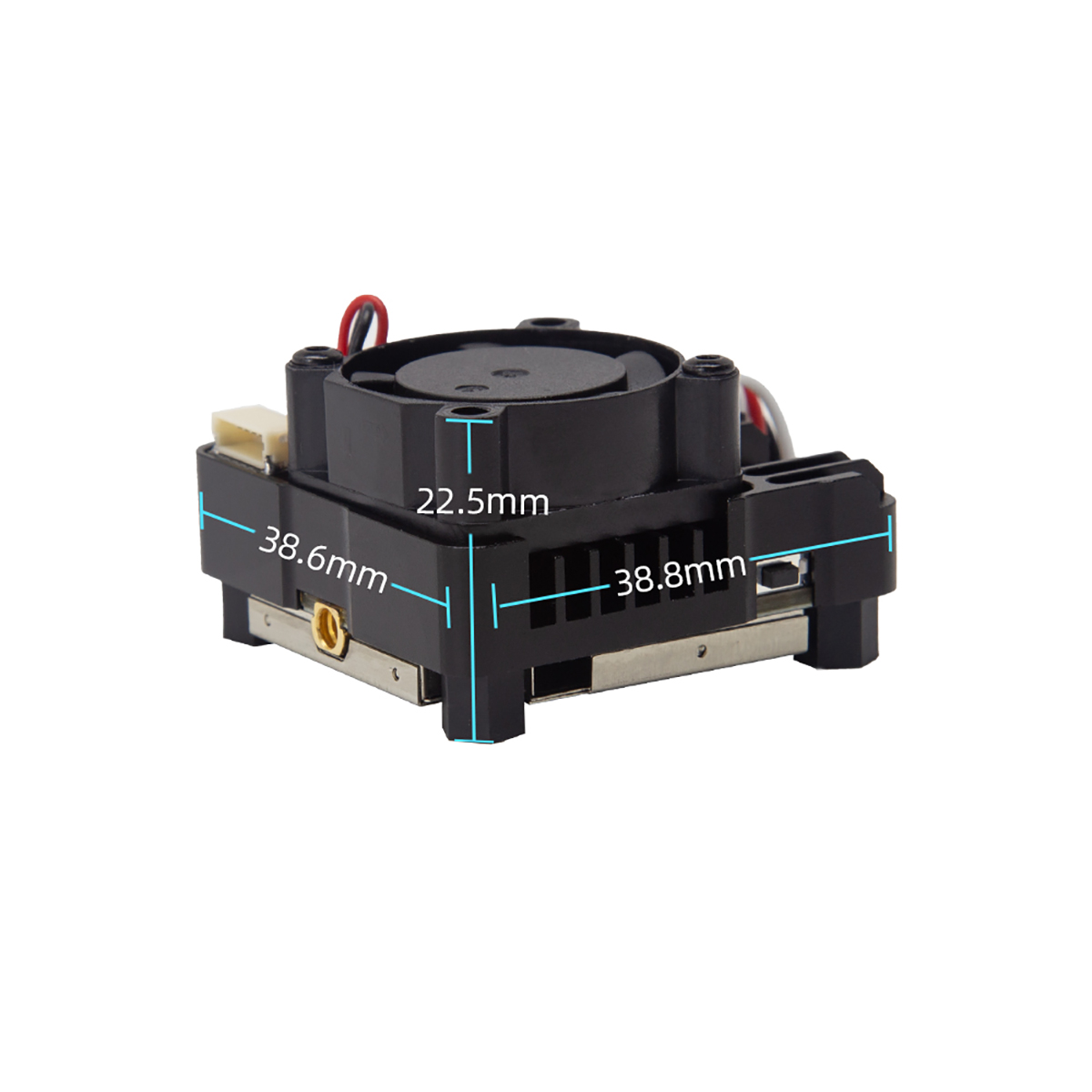

Size: 38.8*38.6*22.5mm
Weight: 40g
