SKYZONE Steadyview X 6.5-8.5GHz Receiver 0.96″ IPS LCD

• Description
• Details
• Reviews

Features

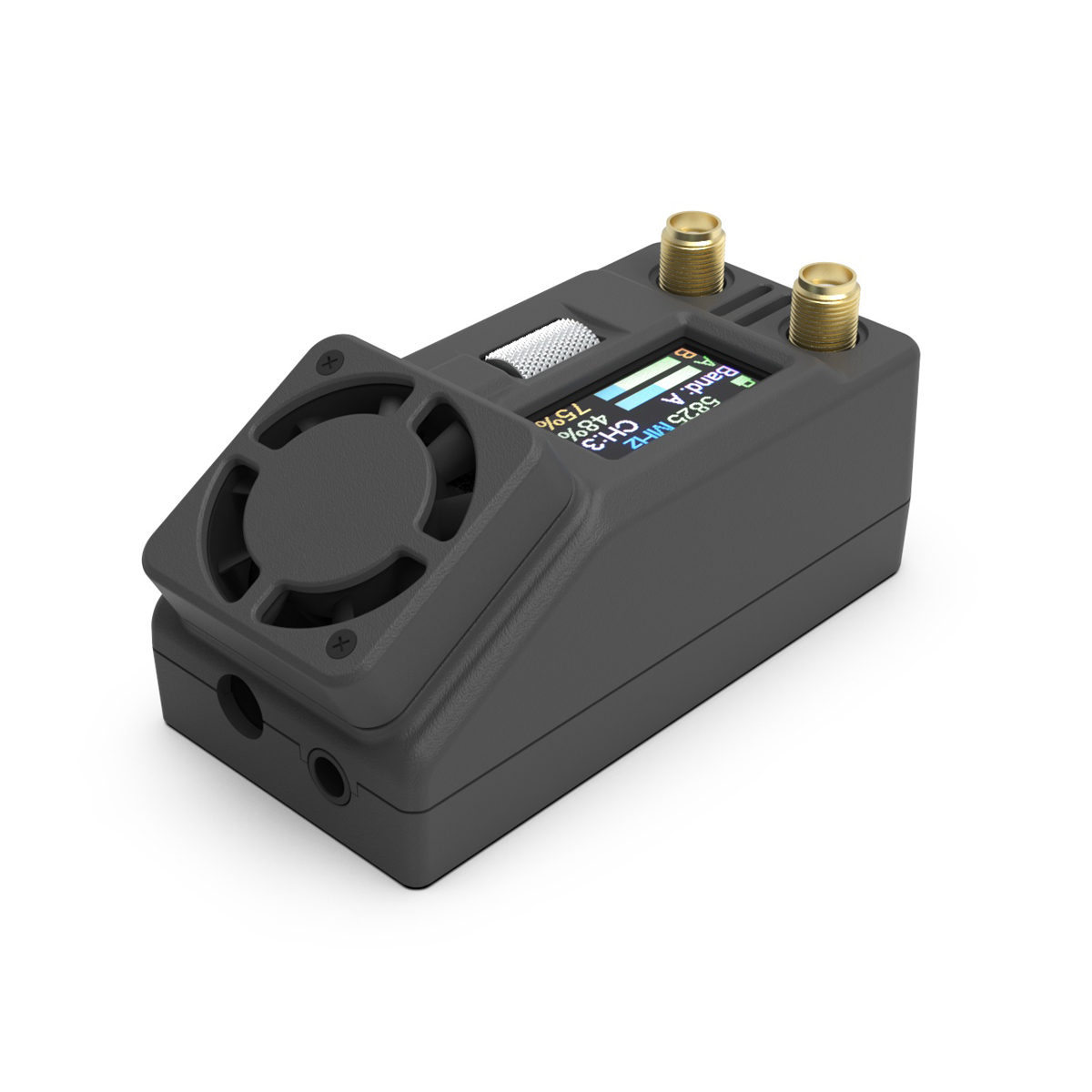

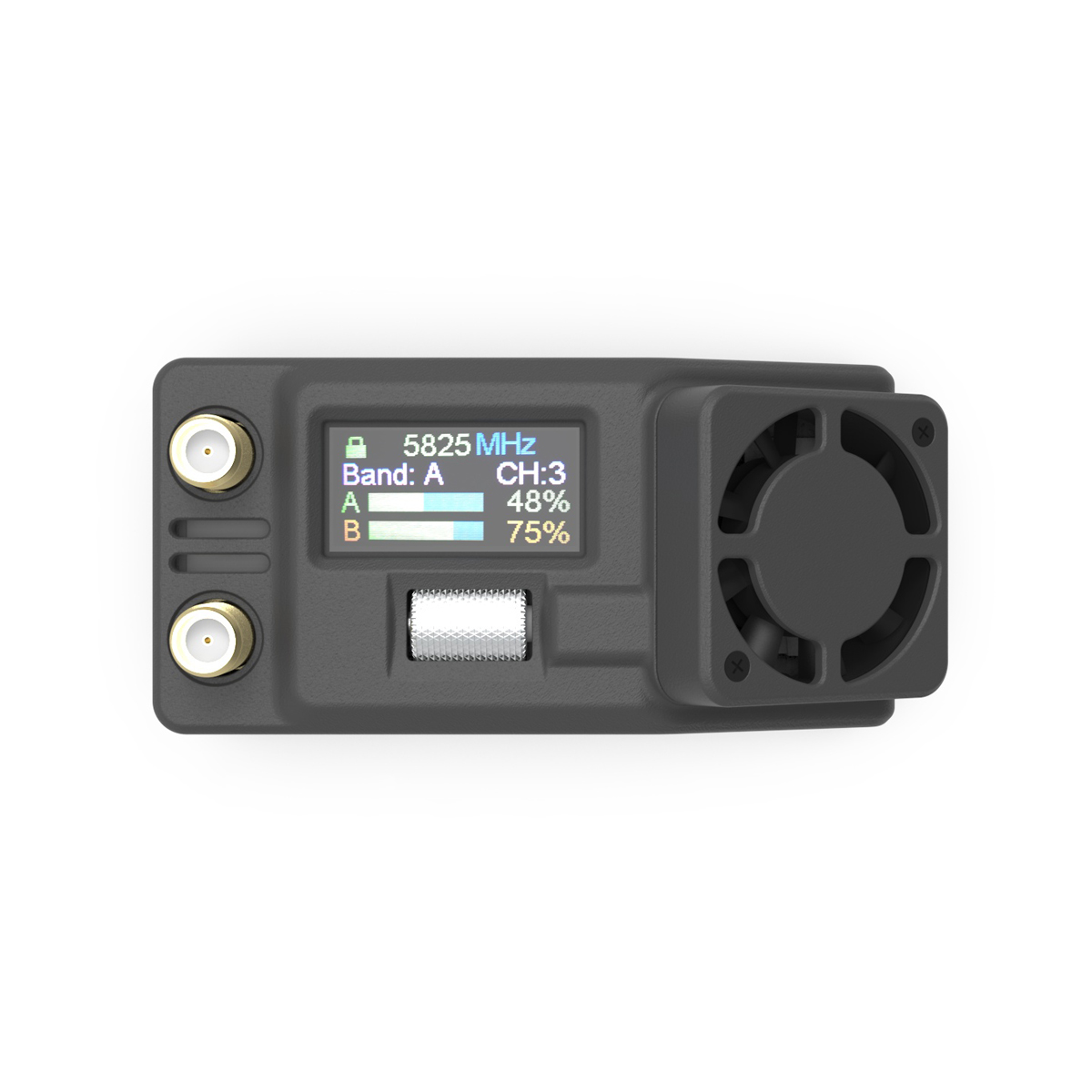

SKYZONE Steadyview X 6.5-8.5GHz Receiver 0.96″ IPS
LCD High Sensitivity -90dBm for FPV Racing Drone
Steadyview X receiver is high performance receiver, unlike
traditional diversity receiver, the Steadyview X have unique
fusion technology and low band Filter hardware, also unique
image reconstruction algorithm, the receiver merge two signals
to one, avoid image tearing and rolling, make image more stable
and clear in challenging condition.
The receiver come with ground station kit and 3 module bay cover,
use can use the receiver on SKYZONE 04 series or fatshark goggles,
also on SKYZONE Cobra goggles, user can use the receiver on any
goggles or monitors which have AV INPUT port.

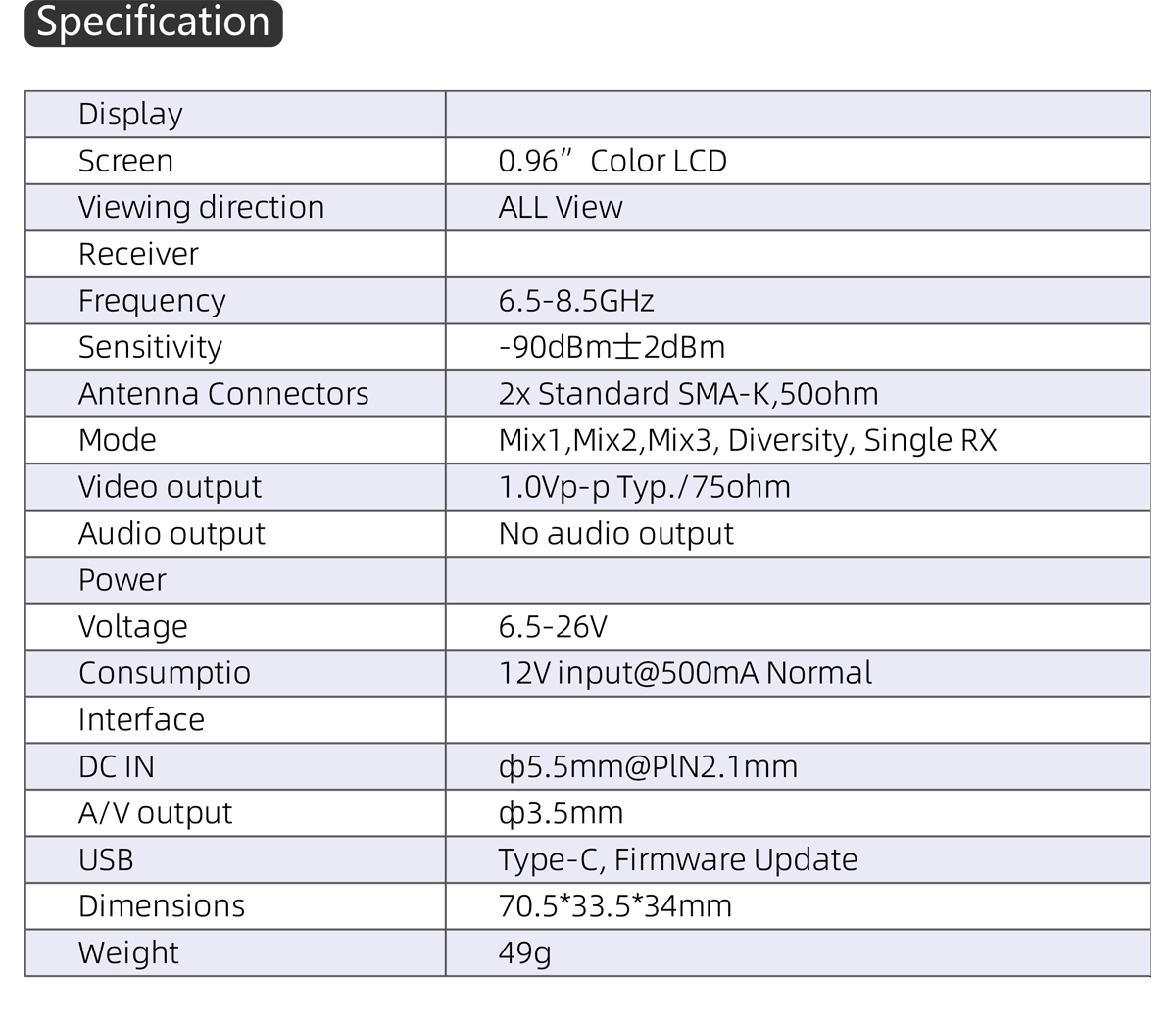

Product Details
Model: SteadyView X
Screen: 0.96” Color LCD
Viewing direction: ALL View
Frequency: 6.5-8.5GHz
Sensitivity: -90dBm±2dBm
Antenna Connectors: 2x Standard SMA-K,50ohm
Mode: Mix1,Mix2,Mix3, Diversity, Single RX
Video output: 1.0Vp-p Typ./75ohm
Audio output: No audio output
Voltage: 6.5-26V
Consumptio: 12V input@500mA Normal
DC IN: ф5.5mm@PlN2.1mm
A/V output: ф3.5mm
USB: Type-C, Firmware Update
Dimensions: 70.5*33.5*34mm
Weight: 49g
