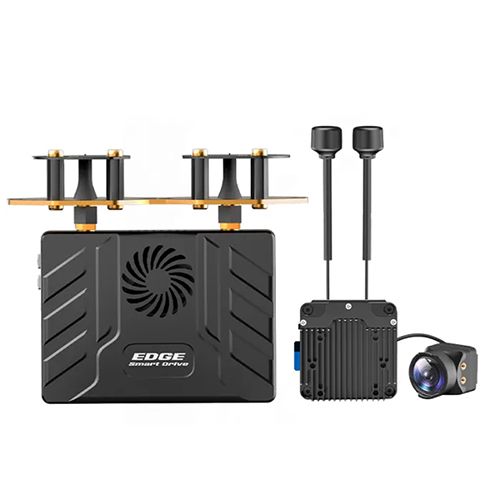

EDGE T33-in-1 HD Digital Video Transmitter FPV Digital
Video Accessories Spare Part for Transmissions
EDGE T3 video transmission system is widely applicable
to drones, unmanned vehicles, and unmanned boats.
It's an essential device that enables seamless
communication and real - time video transfer in
these unmanned systems, facilitating various
operations such as aerial photography, surveillance,
and remote control tasks.
Product Details

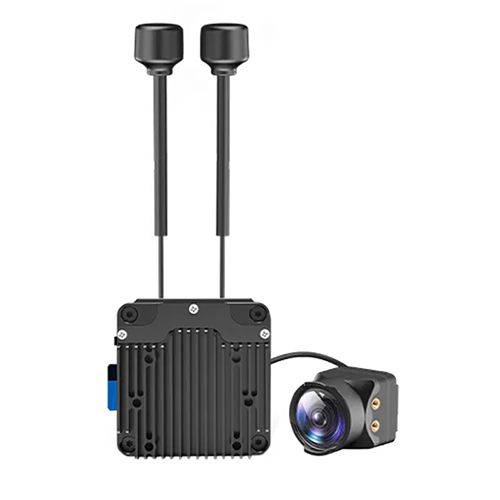

Image Transmission Module (VTX)
Model：T3 VTX
Product Name：T3 Digital HD Image Transmission (Air Unit)
Communication Frequency：5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP)：FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Interface：SH1.0-4P, SH1.0-6P, SH1.0-8P
Mounting Hole Spacing：2×25.5 / 4×20mm
Dimensions：36×36×11.8mm
External Storage：Support microSD card (16-256GB)
Recording Specifications：1080p@60fps
Weight：25g (including heat sink)
Operating Temperature：0°C to +50°C
Available Frequency Points：9
Voltage Input Range：6-28V DC
Supported Flight Control Systems：ArduPilot, Betaflight, iNav
Camera Module
Model：T3 Camera Module
Image Sensor：1/2.8-inch 2MP 16:9 sensor
Resolution：1080P/60FPS
Aspect Ratio：16:9
Lens (Standard)：2.9mm HD120
Aperture：F1.4
FOV：120°
Lens (Optional)：2.2mm HD155
Aperture：F1.9
FOV：155°
Shutter Type：Rolling Shutter
Weight：13g
Dimensions：20×20×30mm / 20×20×25mm
Coaxial Cable Length：130mm
Antenna
Name：Omnidirectional Antenna
Polarization Direction：Left-hand Circular Polarization (LHCP)
Working Bandwidth：5500-6000 MHz
Input Impedance：50 Ω
VSWR：≤1.5
Interface Type：IPEX-1
Dimensions：15×122 mm
Weight：2.5 g (single)

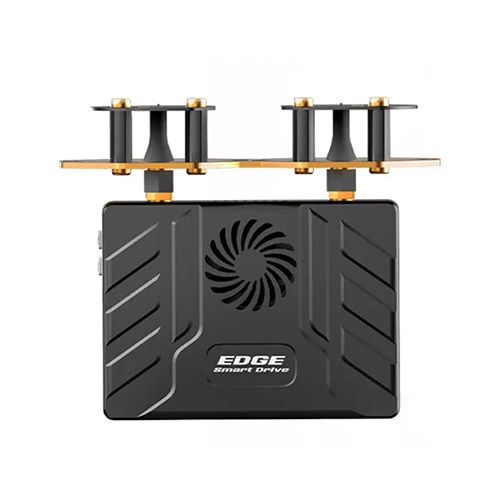

Image Transmission Module (VRX)
Model：T3 VRX
Product Name：T3 Digital HD Image Transmission (VRX)
Communication Frequency：5.18-5.24GHz, 5.745-5.825GHz
Transmit Power (EIRP)：FCC≤30 dBm, CE<14dBm; SRRC<20dBm
Available Frequency Points：9
Interface：SH1.0-4P, SH1.0-6P
Type-C：Video Output 1080P/60FPS
Fixed Hole Spacing：15mm (M2×2)
Dimensions：82×26×68mm
Built-in Battery：5000mAh, 3.7V Lion
Weight：142 g (without antenna)
Operating Temperature：0°C to +50°C
Max Charging Power：20W
Max Discharge Power：20W
Antenna
Name：Directional Antenna
Polarization Direction：Left-hand Circular Polarization (LHCP)
Operating Bandwidth：5000-6000 MHz
Input Impedance：50 Ω
Standing Wave Ratio：≤1.5
Interface Type：RPSMA
Dimensions：102×53×27 mm
Weight：30.5 g
