Boscam RC701 monitor FPV wireless receivers & 2000m Tx


$269.50

 Sold Out

  • Description
  • Details
  • Reviews

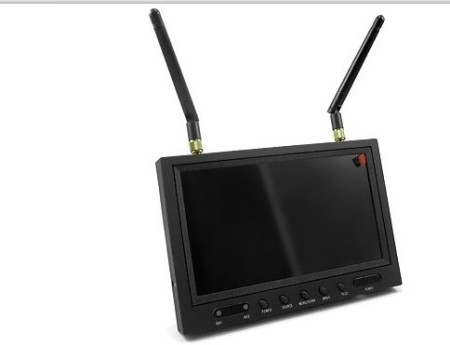

THIS MONITOR IS SPECIALLY DESIGNED FOR FPV AND OUTDOOR APPLICATION.
Special features:
-Built-in Dual Receiver with DIVERSITY Feature to retrieve best video signal
-Dual buffered AV output
-Can receive 2 different channels at the same time
-Not affected by 2.4Ghz R/C radios
-AV receiver with Diversity inputs
-5.8G FPV 2W 12 Ch 2000mW Wireless Audio Video Transmitter AV Sender

Product Details:
-Screen size: 7 inch
-screen type: TFT LCD screen/long life, LED backlight
-Resolution: 800*480
-Brightness:450cd/m2
-contrast: 500:1
-View angle:140/120 degree(Horizontal/Vertical)
-Working Voltage: DV 7-12V(center positive) or 11.1v 3s lipo battery
-Power consumption: 8w
-size: 180*120*23mm
-Built-in 5.8G Dual diversity receiver automatically for best reception

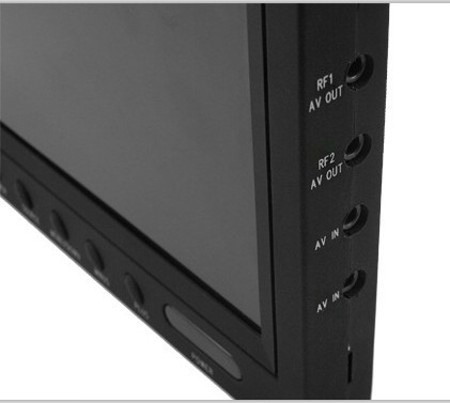

-Built-in 2 CH 5.8G AV output and 1CH AV input
-Support 9 languages menu selection
-Working Temp: -10 ~ +65 degrees celsius
Boscam RC701 AIO FPV Monitor Working frequencies
* CH1: 5705Mhz
* CH2: 5685Mhz
* CH3: 5665Mhz
* CH4: 5645Mhz
* CH5: 5885Mhz
* CH6: 5905Mhz
* CH7: 5925Mhz
* CH8: 5945Mhz

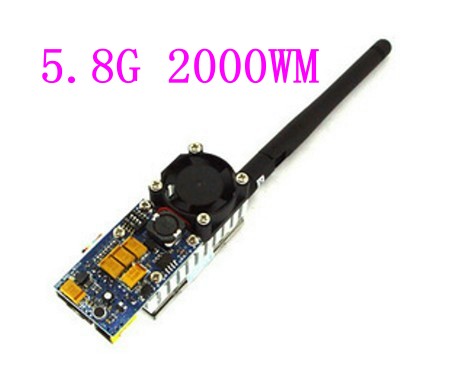

- 5.8GHz 2000mW Wireless AV Transmitter:
- Transmitter Frequency / Channel Amount:5705-5945MHz / 12CH
- Output Power:2000mW/33dBm
- Transmission Distance: Min. 8KM line of sight
- Frequency Control:Built-in frequency & phase lock loop
- AV input: Analog AV signal input
- ANT connector:SMA (needle inside)
- Power Supply: DC 7-12 volts
- Current Supply:1500mA
- Net weight:85g
- Gross weight:100g
  • 0 Units in Stock

Be the first to write a review.  Write a Review.

Product 77/370

 Previous
 List
 Next

This product was added to our catalog on Friday 24 May, 2013.
