Home Battery & Balance Charger Management Module Support 60V Input BEC-5V-5A Output Makeflyeasy

Management Module Support 60V Input BEC-5V-5A Output Makeflyeasy

$65.00

Add to Cart:

Description
Details
Reviews

Features

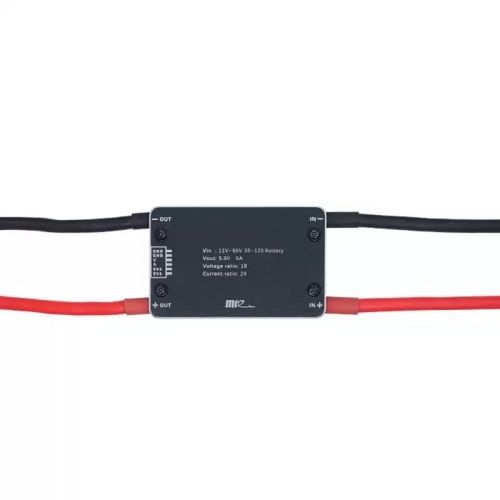

PMU is a high-performance power management module, including
current and voltage detection functions, supporting a maximum
of 60V input and output to supply power to ESC, UBEC, payload
and other electronic devices, and output 5.3V 5A to supply
power to the flight control
Product Details
Model：PMU
Working Voltage：12V-60V(3S-12S)
Working Amps：0-80 A
V/A Accuracy：±0.1 V/±0.2 A
Voltage Divide Ratio：18
Voltage A/V ratio：24
Regulated Output：5.3V/5A
Operating Temp.：-20°C~+100°C
Interface：IN/OUT:AWG12,Power:SM06B-GHS-TB
Size：Module:50×32×10mm,Line:220mm
Weight：65g
Item Packing
3
MFE-PMU
Makeflyeasy PMU Power Management Module Support 60V Input BEC-5V-5A Output
