Radiomaster Nexus-XR Helicopter Flight Controller Integrated 2.4

• Description
• Details
• Reviews

Features
Color: Blue, Gold, Grey, Purple, Red

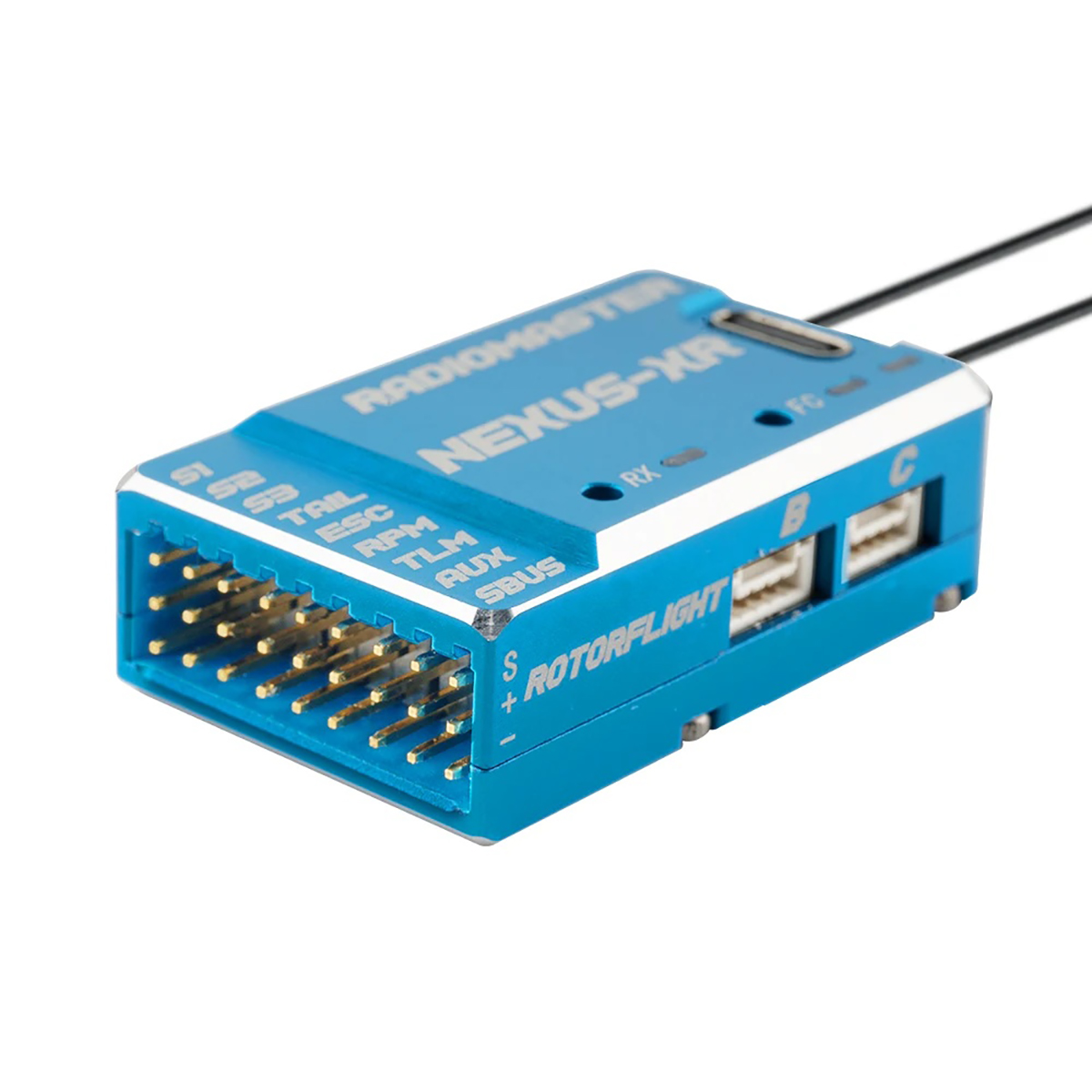

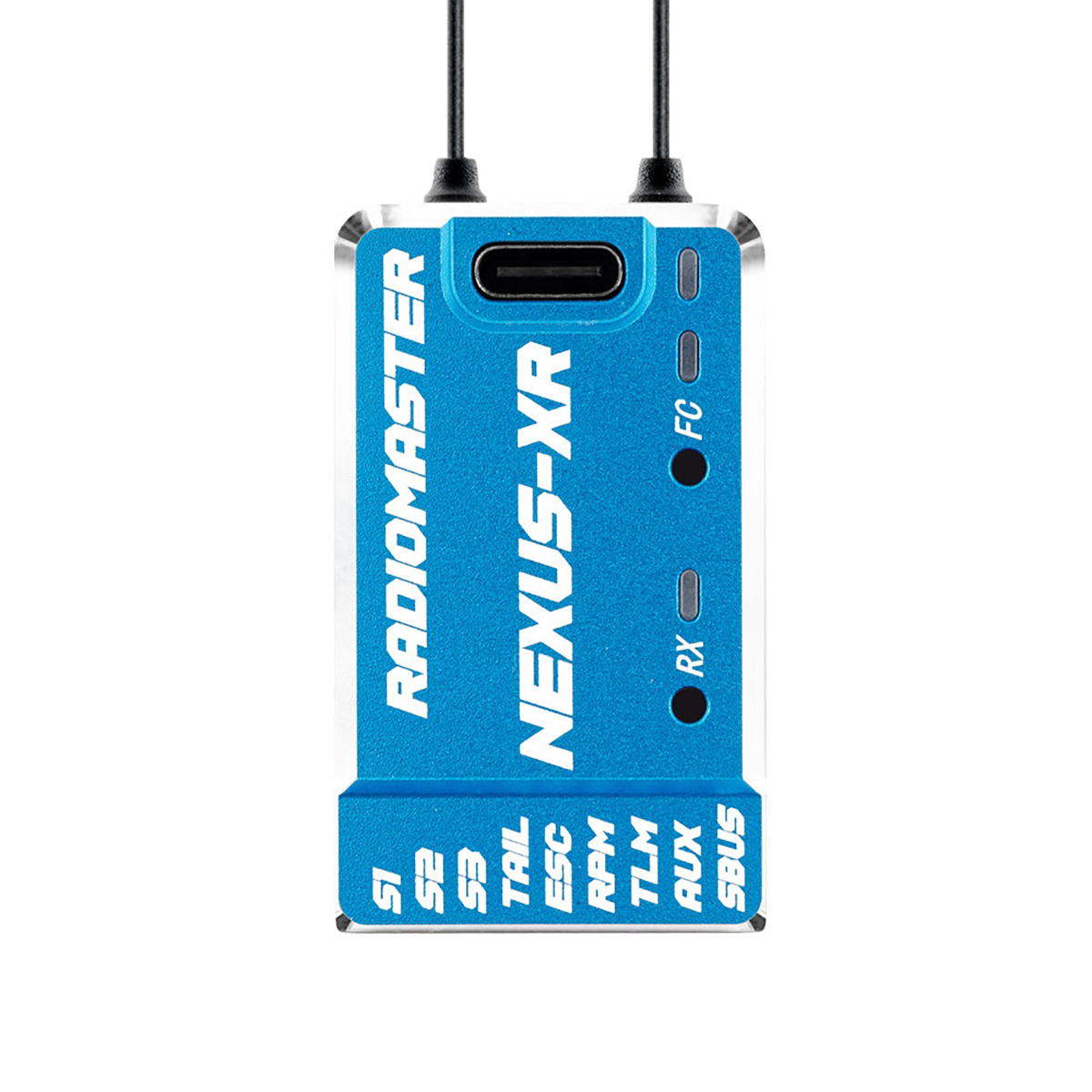

Radiomaster Nexus-XR Helicopter Flight Controller Integrated
2.4GHz ExpressLRS Receiver for RC Fixed Wing Helicopter

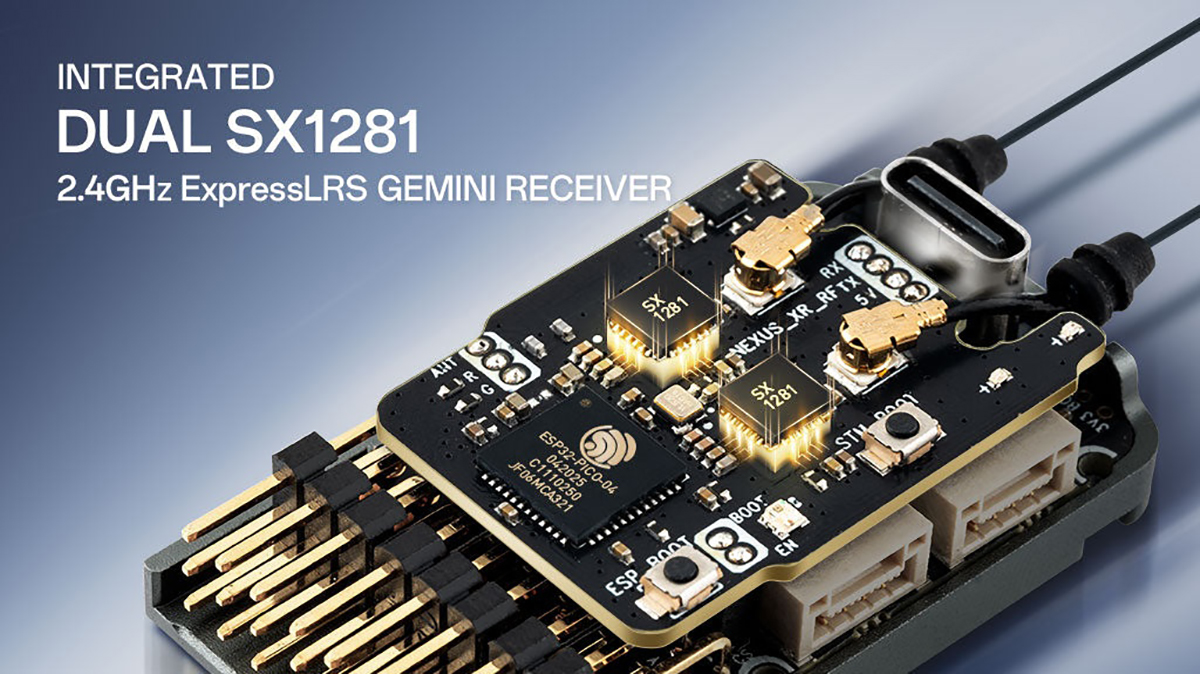

Integrated ExpressLRS Receiver: Dual Semtech SX1281 2.4GHz transceivers
for seamless RF performance, eliminating the need for an external receiver.
Optimized for RF 2.2: Engineered for peak performance and compatibility.
Precision Control: STM32F722 MCU and ICM42688P 6-axis motion
sensor/accelerometer for superior dynamics.
Data Logging: 256MB onboard flash memory for detailed logging and tuning.
Dual Antenna Design: Two 65mm wire antennae for superior signal strength and range.
Versatile Connectivity: Multiple UART ports support CRSF, ELRS, S.BUS, and more.
More PWM Pins: Additional pins for expanded control in complex setups.

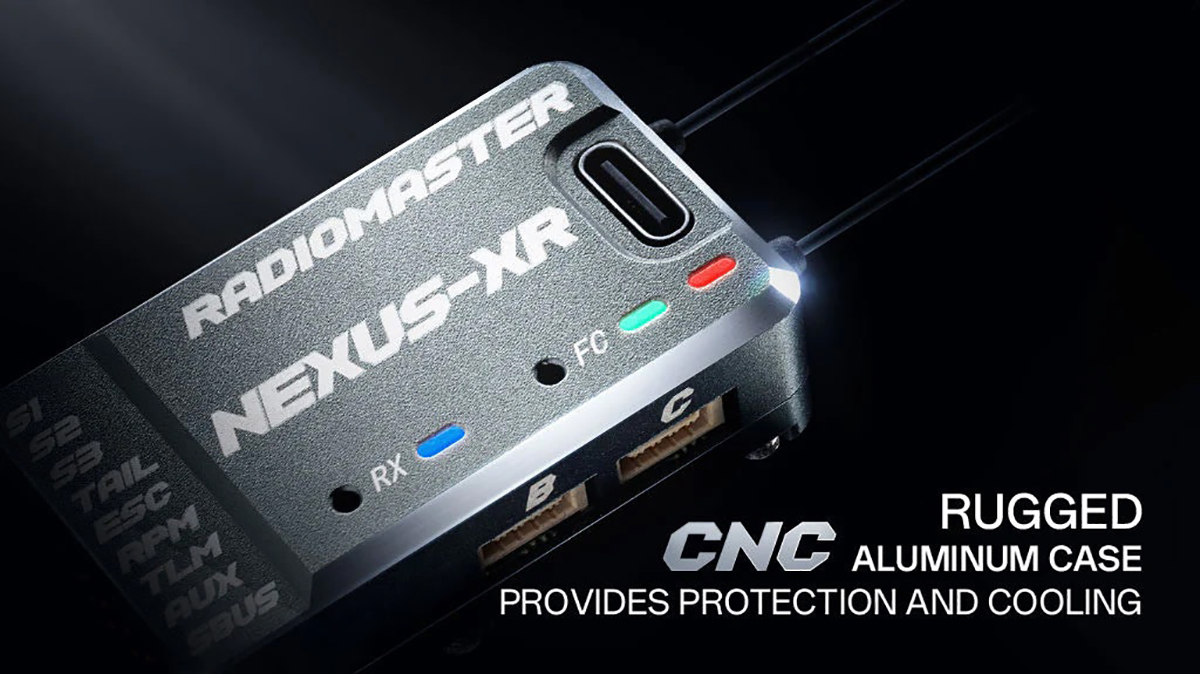

CNC-Machined Aluminum Case: Sleek, rugged design doubles as a heat sink to keep the system cool.
12V Servo Support: Capable of supporting 12-volt servos.
Wide Voltage Range: Supports 3.6V–70V external power input for flexible setups.
Improved BEC: Stable, reliable power delivery to electronics for enhanced performance.
Isolated Power Supplies: Dedicated 1.8V, 3.3V (MCU), and 5V (interfaces) to minimize noise.

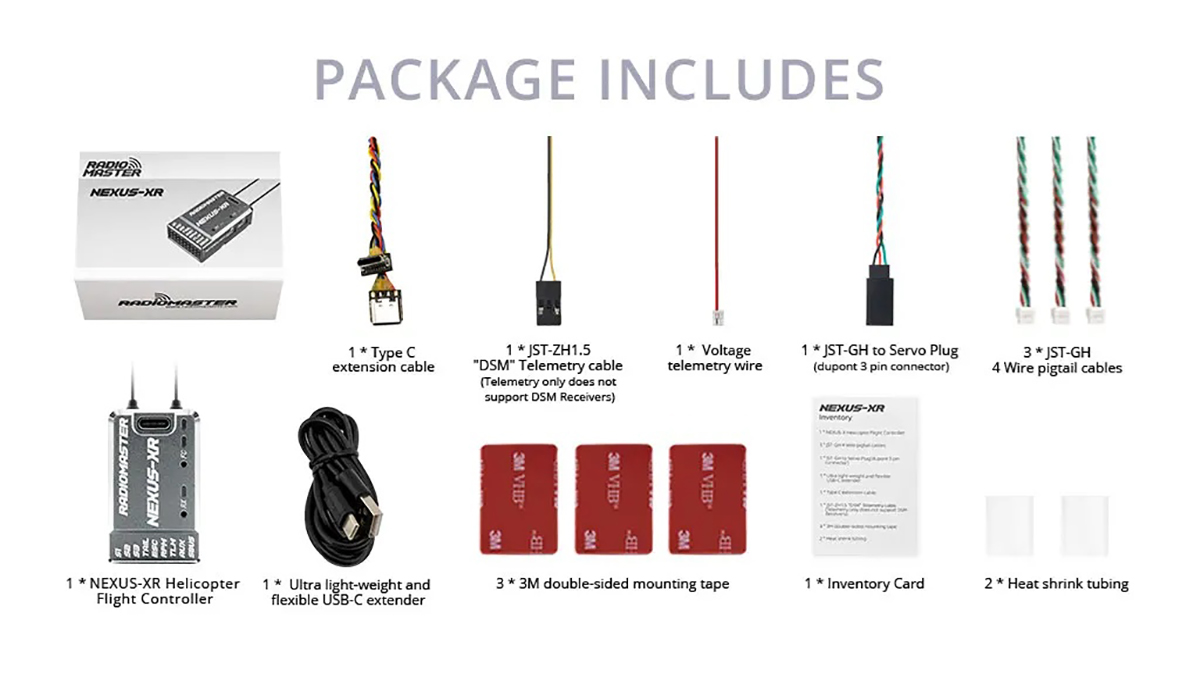

USB-C Accessibility: Lightweight, flexible USB-C extender cable for easy access in tight builds.
Compact and Lightweight: Ideal for any application.
RF Rescue: Standard feature for enhanced safety in emergencies.

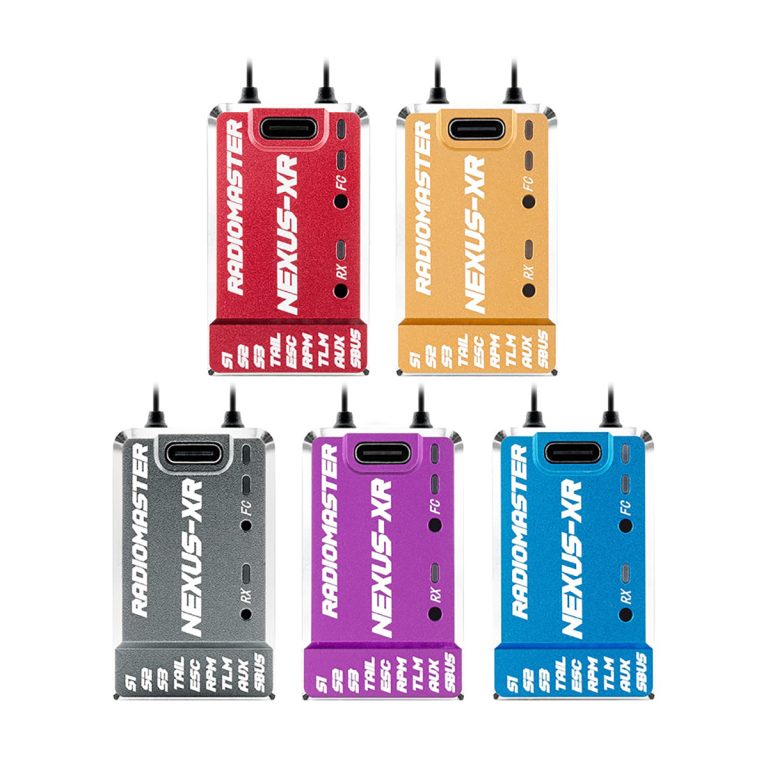

Optional Case Color: Grey / Gold / Red / Blue / Purple.
Product Details
Model: NEXUS-XR Control System
Firmware: RF 2.2
MCU: STM32F722RET6
Flash Memory (Black Box. IC): 256MB (W25N02KVZEIR)
Barometer: SPL06-001

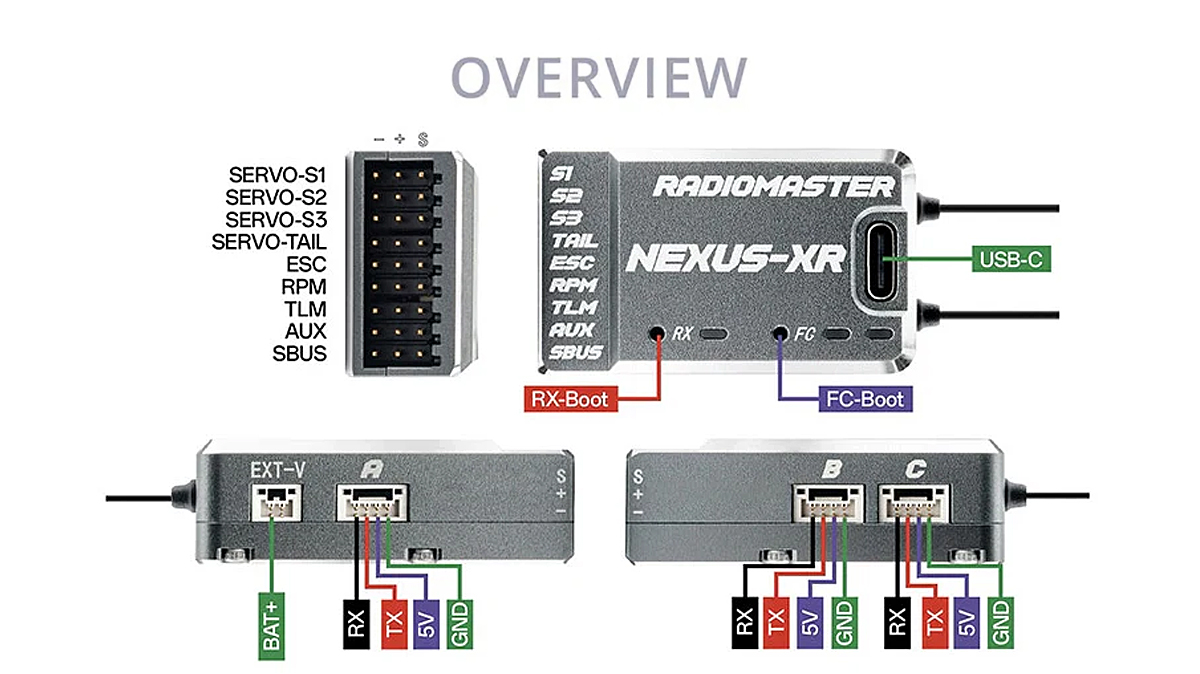

Uart: 5 – S.BUS[UART1], TELEM[UART2], PORT-A[UART4], PORT-B[UART6], PORT-C[UART3]
Servo: S1, S2, S3, TAIL Servos (Up to 12V )
Rpm Sensor: 1 – FROM ESC FREQUENCY SENSOR
AUX: 1
Ext voltage input (tele): 3.6-70v
Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP
Voltage Supply(DC): 5 – 16V
A-B-C Serial Port Power Output: 5V – 1.5A
Telemetry: S.BUS, HoTT, S.Port, MSP, EDGETX, ELRS
Internal Receiver: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
MCU: ESP32
Type: ISM
RF Chip: SX1281 x 2
Antenna: 65mm 2.4GHz Wire Antenna x 2
Frequency Range: 2.4GHz
Maximum Refresh Rate: 500Hz / F1000Hz
Telemetry RF Power: Max 2 x 10mW
Wifi Updates: Yes
FW Target: RadioMaster RP4TD-M 2400 RX
Bus interface: CRSF

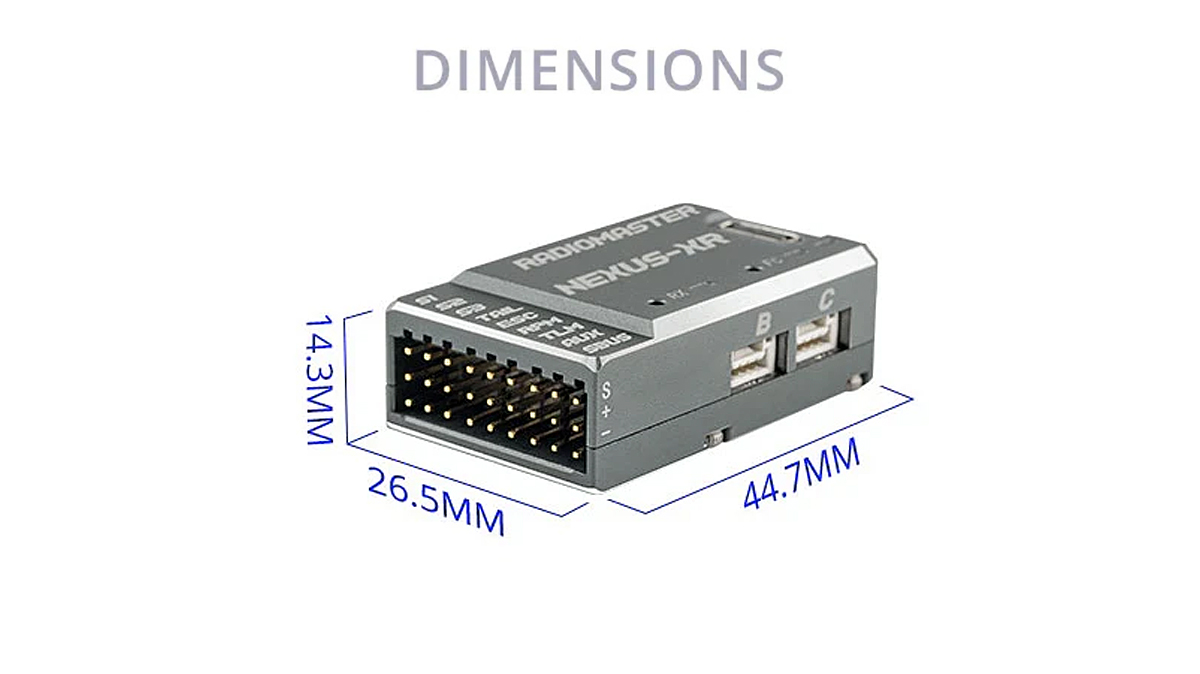

Demensions: 44.70 x 26.50 x 14.30mm
Weight: 24.1g
