Makeflyeasy PixPilot V3 Flight Control System Kit Pixhawk
Open Source Flight Control for VTOL Drones
PixPilot V3 flight control system is a general-purpose
flight control developed on the basis of open-source
flight control FMU V3. It adopts the stable and
reliable F427 processor, which comprehensively
improves the performance of IMU sensors and adapts
to more working environments. It is characterized
by stable performance, simple installation, and humanized use.
Product Details

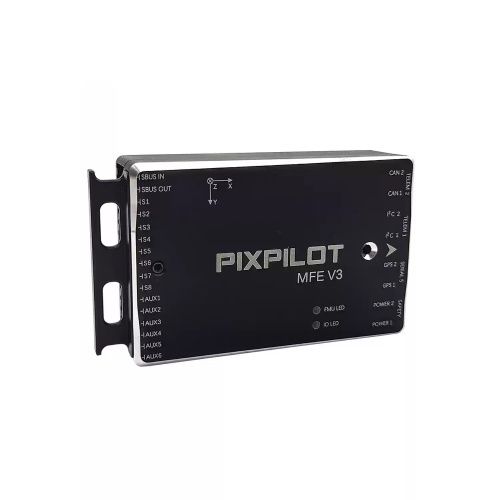

PixPilot V3
Main processor：STM32F427(32 Bit Arm Cortex-M4 180Mhz 2M Flash 256K RAM)
Coprocessor：STM32F103(32 Bit Arm Cortex-M3 72Mhz 64K Flash 20K RAM)
Sensor：ICM-42688-P X2(Acceleration & Gyroscope),ICM-40605 X1
(Acceleration & Gyroscope),MS5611 X 2(Barometer),IST8310(Compass)
UART：5
I2C：2
CAN：2
PWM：8+6
PPM/SBUS-IN：1
SBUS-OUT：1
Power 1：1
Power 2：1
USB-Type-C：1
TF-card slot ：1
Shell material：CNC Aviation aluminum alloy
Operating temperature：-10 ℃~55℃
Size：76×45×19(mm)
Weight：60g

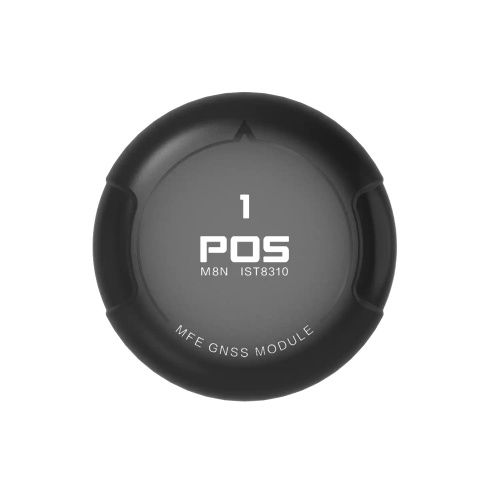

POS1
GPS：U-blox M8N
magnetic compass：IST8310
Positioning accuracy：2.5m
Update frequency：10hz(Max)
Cold start：26s
Hot start：1s
Tracking Sensitivity：-167dBm
Magnetic Compass Accuracy：1-2°
Magnetic Compass Resolution：3milli-gauss
Working Voltage：5V
Working Temperature：(-10℃~70℃)
Dimension：Module: 60×60×17(mm) Line: 300mm
Weight：54g
PMU
Working Voltage：12V-60V(3S-12S)
Working Amps：0-80 A
V/A Accuracy：±0.1 V/±0.2 A
Voltage Divide Ratio：18
Voltage A/V ratio：24
Regulated Output：5.3V/5A
Operating Temp.：-20°C~+100°C
Interface：IN/OUT:AWG12,Power:SM06B-GHS-TB
Size：Module:50×32×10mm,Line:220mm
Weight：65g
