Features:

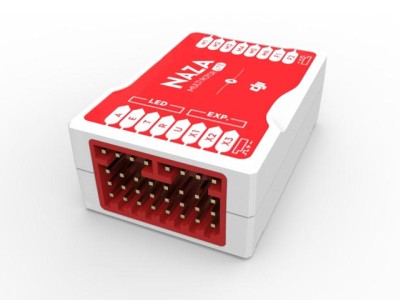

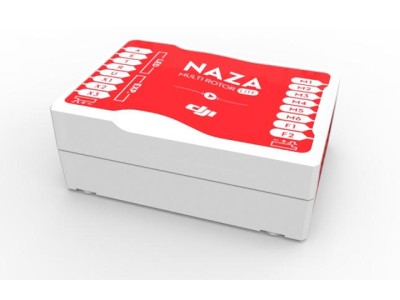

For entry-level enthusiasts, DJI now brings out the most cost-effective solution, the NAZA-M Lite flight control system. As the simplified version of NAZA-M, it inherits the high reliability and stability of NAZA-M. The innovative All-in-one design simplifies installation and saves space and weight. It contains inner damping, controllers, 3-axis gyroscope, 3-axis accelerometer and barometer in its light and small Main Controller. It can measure flying altitude, attitude and therefore can be used for autopilot/automatic control.
The advanced attitude stabilization algorithm not only inherits the outstanding flight stability of DJI products, but also provides excellent maneuverability. It is more flexible and stable, and gives the hobbyists a wonderful flight experience.
It offers three types of control modes: GPS Atti. Mode (with GPS module), Atti. Mode, Manual Mode. The pilot can switch between the three modes to achieve different flight characteristics. It also can adjust automatically within the flight environment and intelligently switch between GPS Atti. Mode and Atti. Mode to make sure the flight is safe and secure.
The plug and play GPS module will greatly enhance the performance for Aerial Photography with accurate Position Hold, Return-To-Home and Intelligent Orientation Control functionalities. With the GPS Module, the multi-rotor will have position and altitude locked accurately even in windy conditions. Hovering accuracy is approximately 2.5m horizontal and 0.8m vertical.
Usually, the forward direction of a flying multi-rotor is the same as the nose direction. By using Intelligent Orientation Control (IOC), wherever the nose points,the forward direction has nothing to do with nose
direction:
In course lock flying, the forward direction is the same as a recorded nose direction. See the following figures(Mode 1)：
In home lock flying, the forward direction is the same as the direction from home point to multi-rotor.See the following figures (Mode 2)：
In order to prevent your multi-rotor from crashing or other harmful consequences caused by low battery voltage, we have designed two levels of low voltage protection. You can choose not to use this, however we strongly recommend you to enable the protection. Both levels of protection have LED warning as default. The first level will blink the red light continuously; the second level will blink red light continuously and the multi-rotor will descend and land. In manual mode when low voltage protection is triggered the LED warning will be active only.
There are four ways to start the motors, see the following picture:
When you want to start the multi-rotor, you need to perform any of the ways of CSC. During the flight, if the motors stop, you can immediately execute the CSC and the motors will start. This enhances the safety of the multi-rotor; no uncontrolled starting of the motors.
Motor Disarm: There are two modes of Motor Disarm: namely Intelligent Mode and Immediate Mode. For more information, please refer to the user manual or DJI Wiki.
Item Packing
-NAZA-M-LITE X 1

Supported Multi-rotor	Supported ESC output	Recommended Transmitter	Working Voltage Range
Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6	400Hz refresh frequency	PCM or 2.4GHz with minimum 4 channels	MC:4.8V~5.5V VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)
Power Consumption	Operating Temperature	Assistant Software System Requirement
MAX1. 5W (0.3A@5V) Normal:0.6W (0.12A@5V)	-10°C ~ 50°C	Windows XP sp3 / Windows 7 / Windows 8
FLIGHT PERFORMANCE	Hovering Accuracy (GPS Mode)	Max Yaw Angular Velocity	Max Tilt Angle	Ascent / Descent
FLIGHT PERFORMANCE	Vertical:±0.8m Horizontal:±2.5m	200°/s	45°	±6m/s
HARDWARE	Weight	Dimensions	Built-In Functions
HARDWARE	MC:25g VU:20g GPS:21.3g	MC: 45.5mm x 31.5mm x 18.5mm VU: 32.2mm x 21.1mm x 7.7mm GPS & Compass 46mm(diameter)x9mm	Three Modes Autopilot Enhanced Fail-safe Low Voltage Protection S-Bus Receiver Support 2-axle Gimbal Support

100 Units in Stock
Manufactured by: DJI
