Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo
×
larger image
Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo
×
larger image
larger image
larger image
larger image
Features

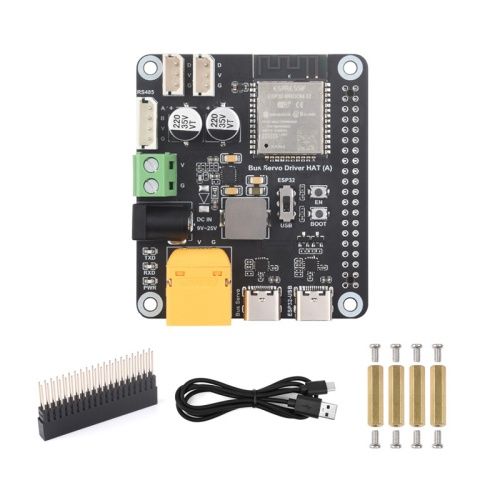

Waveshare Serial Bus Servo Driver HAT Integrates ESP32 and Servo Control
Circuit for ST/RSBL Series Serial Bus Servos
Product Details
Model:Bus Servo Driver HAT (A)
SKU:27577
Weight:82g
Controller:ESP32-WROOM-32
Power supply port:XT60 connector, 5.5×2.5mm DC jack
Power supply:9~25V (the input voltage and the servo voltage must be matched)
Communication interface:UART, USB Type-C port×2
Wireless communication:2.4G WiFi
Mounting hole diameter:3mm
Mounting hole spacing:58×49mm
PCB size:65×57 mm
Item Packing
Bus Servo Driver HAT (A) x1
2×20 pin header x1
USB-A to USB-C cable x1
Screws pack x1
WS-SDB-27577
Write Review
100 Units in Stock
Ask a Question
$29.99
