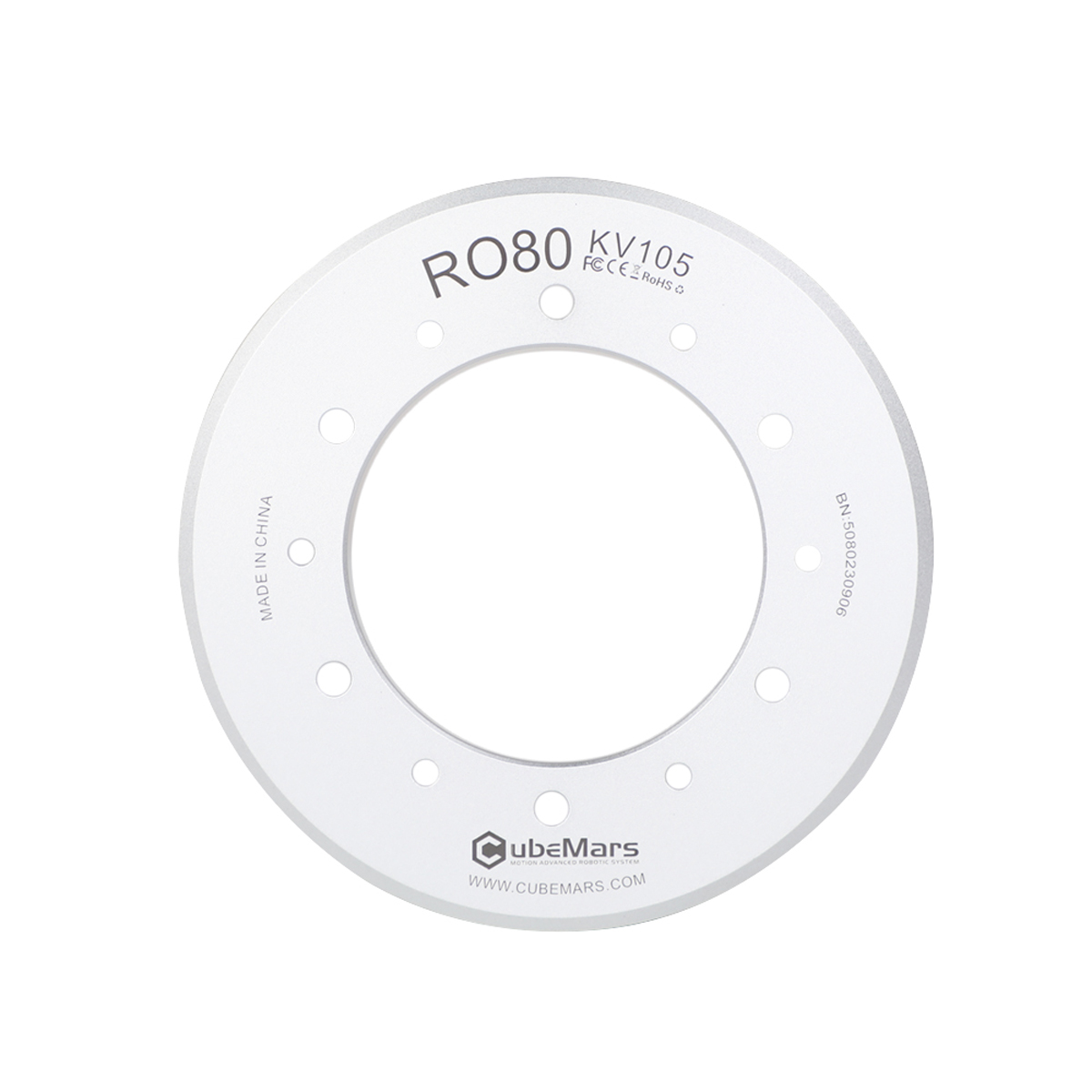

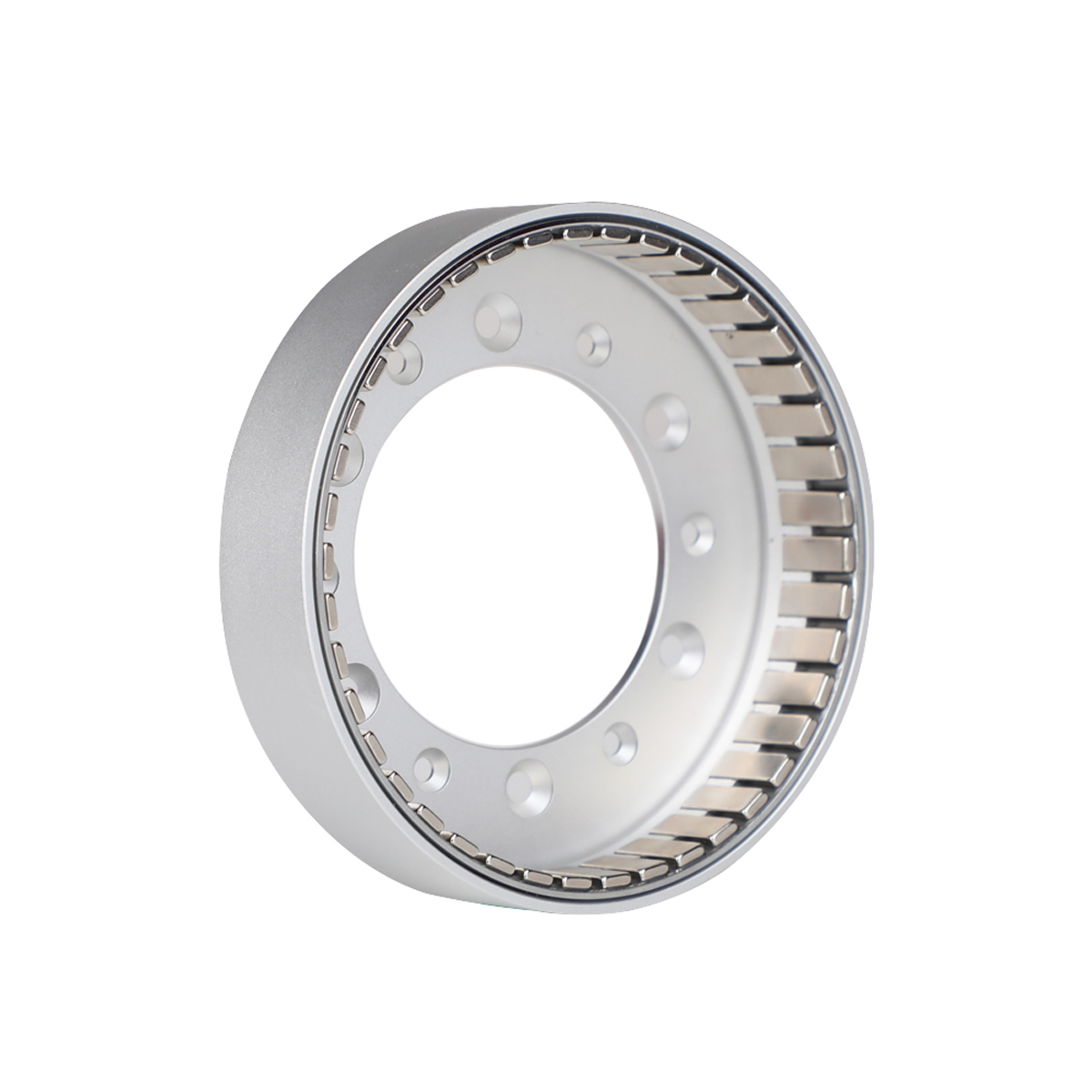

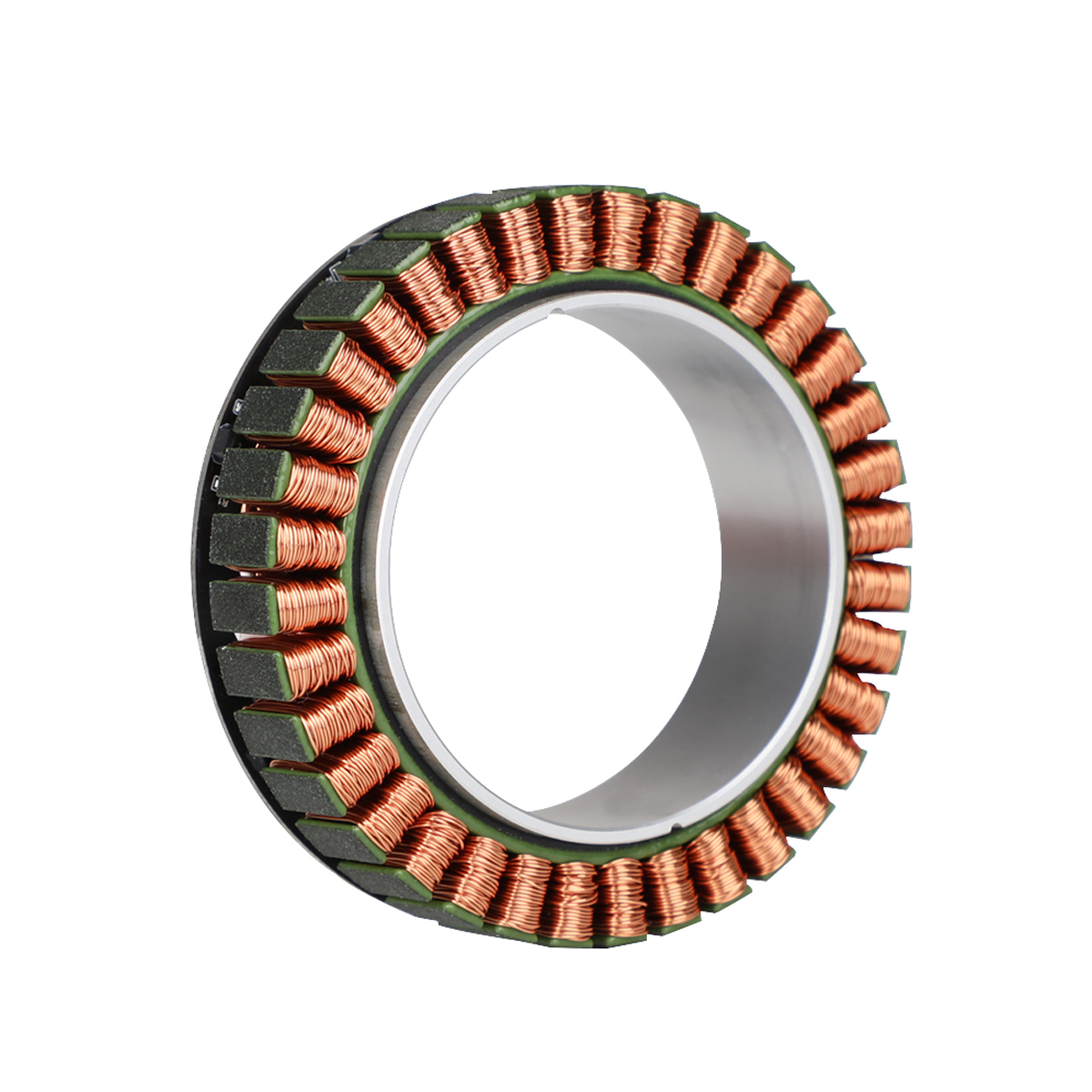

RO80 KV105 Frameless Outrunner Hollow Bore Motor CubeMars
RO80 KV105 Frameless Outrunner Hollow Bore Motor CubeMars
RO80 KV105 Frameless Outrunner Hollow Bore Motor CubeMars
×
larger image
Features

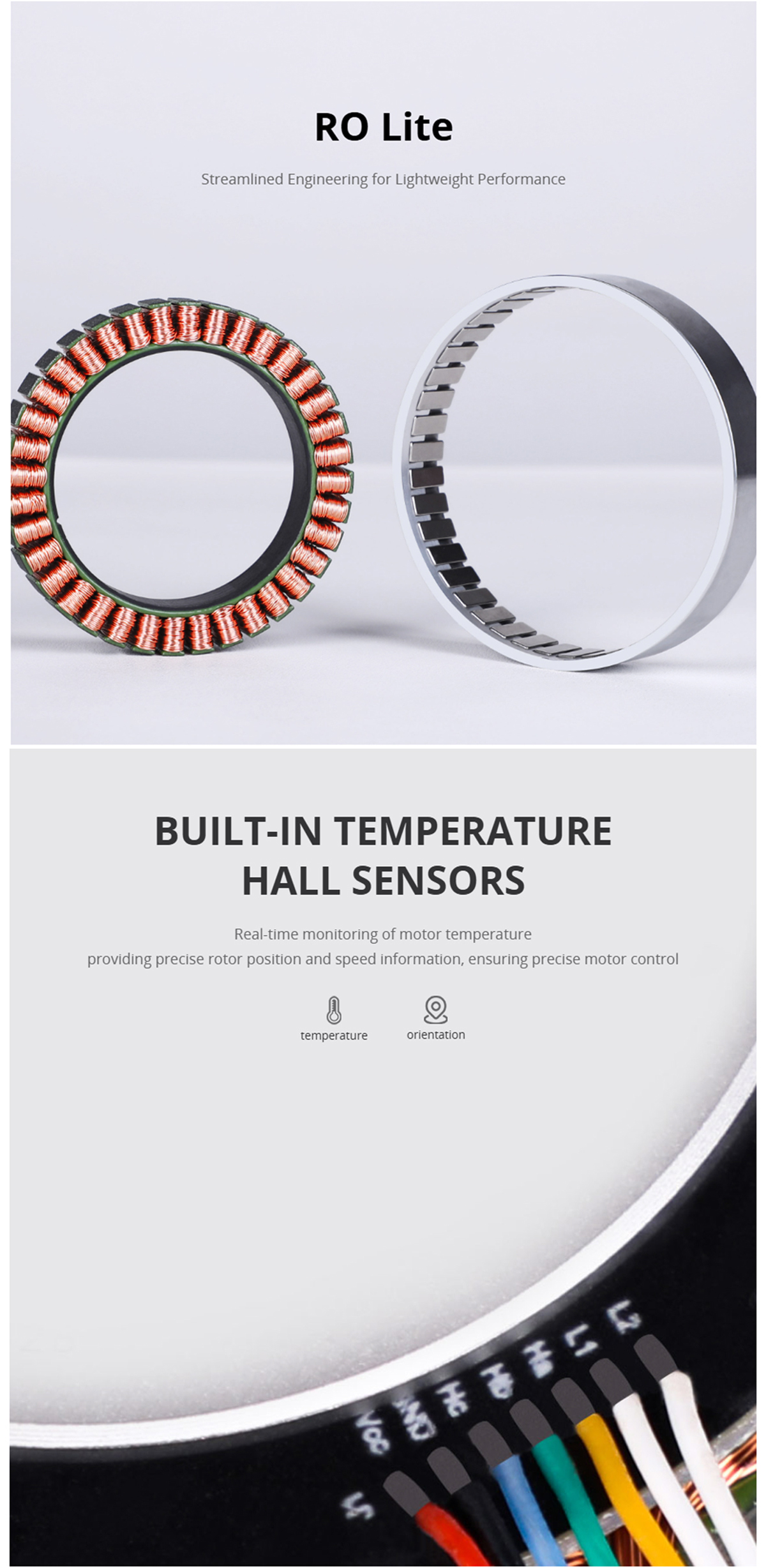

Without Hall Sensor, With Hall Sensor
CubeMars RO80 KV105 Frameless Outrunner Torque Motor 120
Large Hollow Bore Structure for Robotic Joints Exoskeletons
Ultra-low cogging torque design

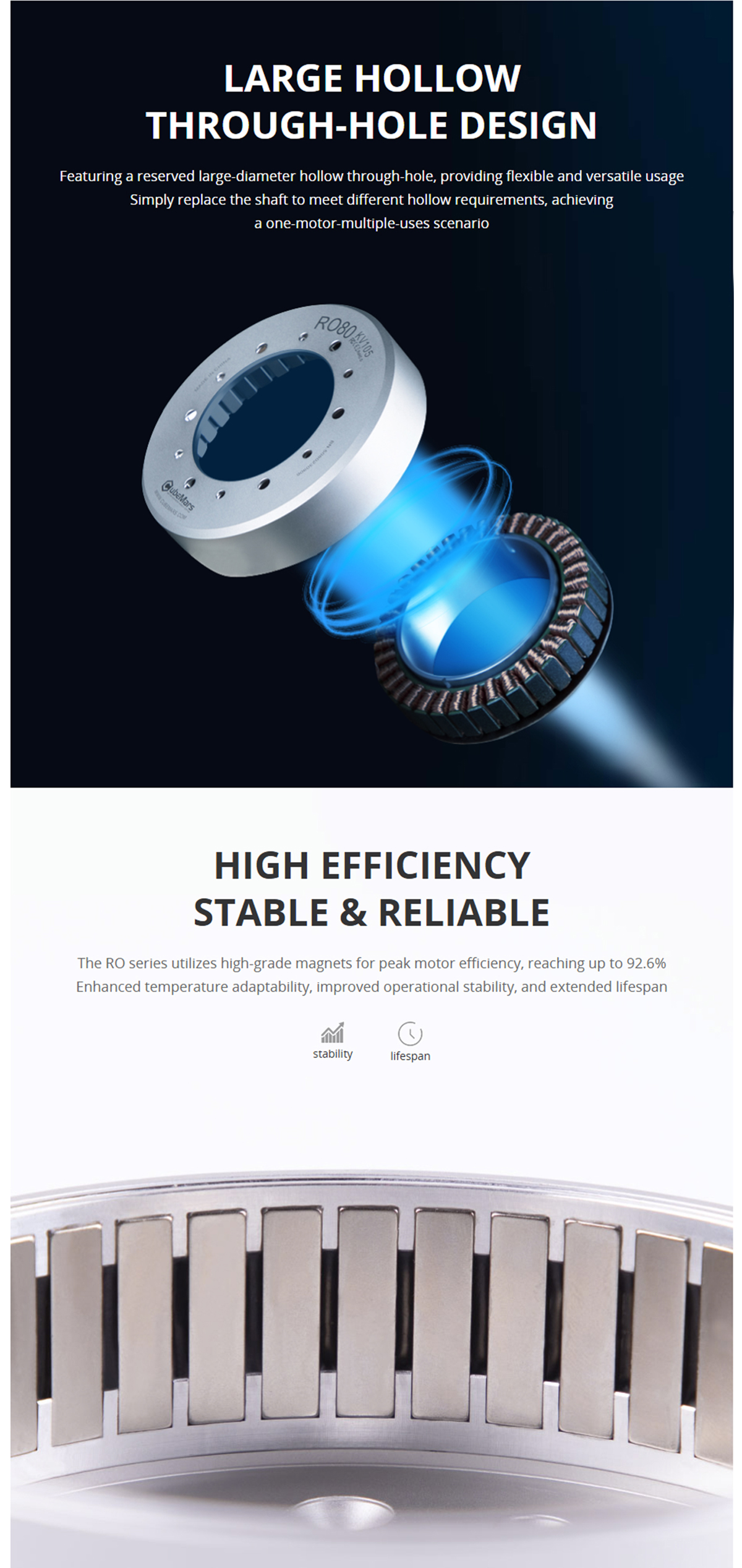

Large hollow bore structure
Continuous torque output: 1.3 N·m
Highly integrated frameless outrunner architecture

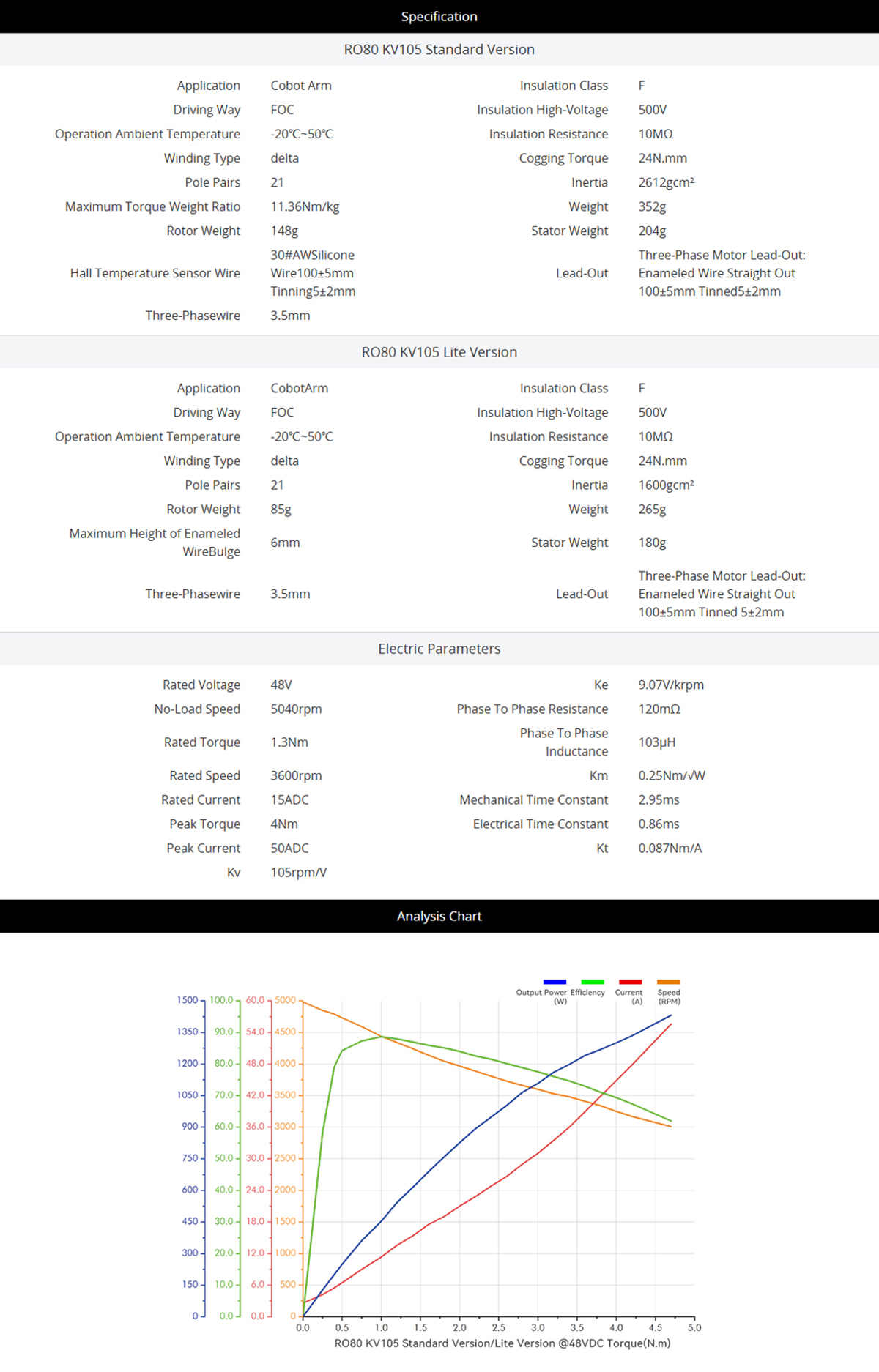

Product Details
Model: RO80 KV105 Lite Version( Without Hall Sensor)
Application: Cobot Arm
Insulation Class: F
Driving Way: FOC
Insulation High-Voltage: 500V
Operation Ambient Temperature: -20℃~50℃
Insulation Resistance: 10MΩ
Winding Type: Delta
Cogging Torque: 24N.mm
Pole Pairs: 21
Inertia: 1600gcm²
Rotor Weight: 85g
Weight: 265g
Maximum Height of Enameled Wire Bulge: 6mm
Stator Weight: 180g
Three-Phase Wire: 3.5mm
Lead-Out: Three-Phase Motor Lead-Out:Enameled
Wire Straight Out 100±5mm Tinned 5±2mm

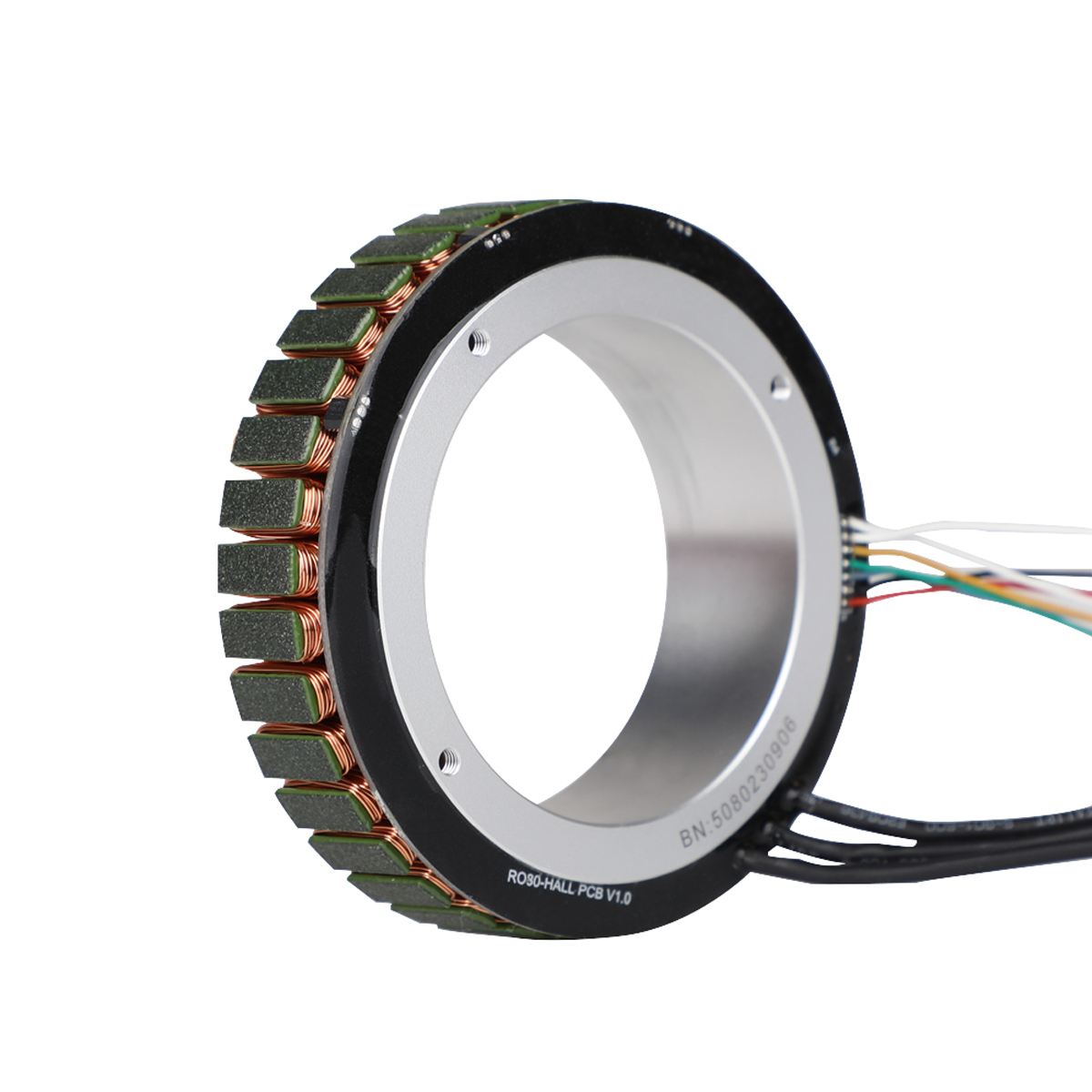

Model: RO80 KV105 Standard Version (With Hall Sensor)
Application: Cobot Arm
Insulation Class: F
Driving Way: FOC
Insulation High-Voltage: 500V
Operation Ambient Temperature: -20℃~50℃
Insulation Resistance: 10MΩ
Winding Type: Delta
Cogging Torque: 24N.mm
Pole Pairs: 21
Inertia: 2612gcm²
Maximum Torque Weight Ratio: 11.36Nm/kg
Weight: 352g
Rotor Weight: 148g
Stator Weight: 204g
Hall Temperature Sensor Wire: 30# AWG Silicone Wire 100±5mm, Tinning 5±2mm
Lead-Out: Three-Phase Motor Lead-Out: Enameled Wire Straight Out 100±5mm Tinned5±2mm
Three-Phase Wire: 3.5mm
Write Review
100 Units in Stock
Ask a Question
$120.99
Add to Cart:
Add to Cart
Notifications
Notify me of updates to
RO80 KV105 Frameless Outrunner Hollow Bore Motor CubeMars
This product was added to our catalog on Tuesday 13 January, 2026.
