CubeMars AK45-10 75KV Brushless Motor
CubeMars AK45-10 75KV Brushless Motor
CubeMars AK45-10 75KV Brushless Motor
×
larger image
CubeMars AK45-10 75KV Brushless Motor
×
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
larger image
Features

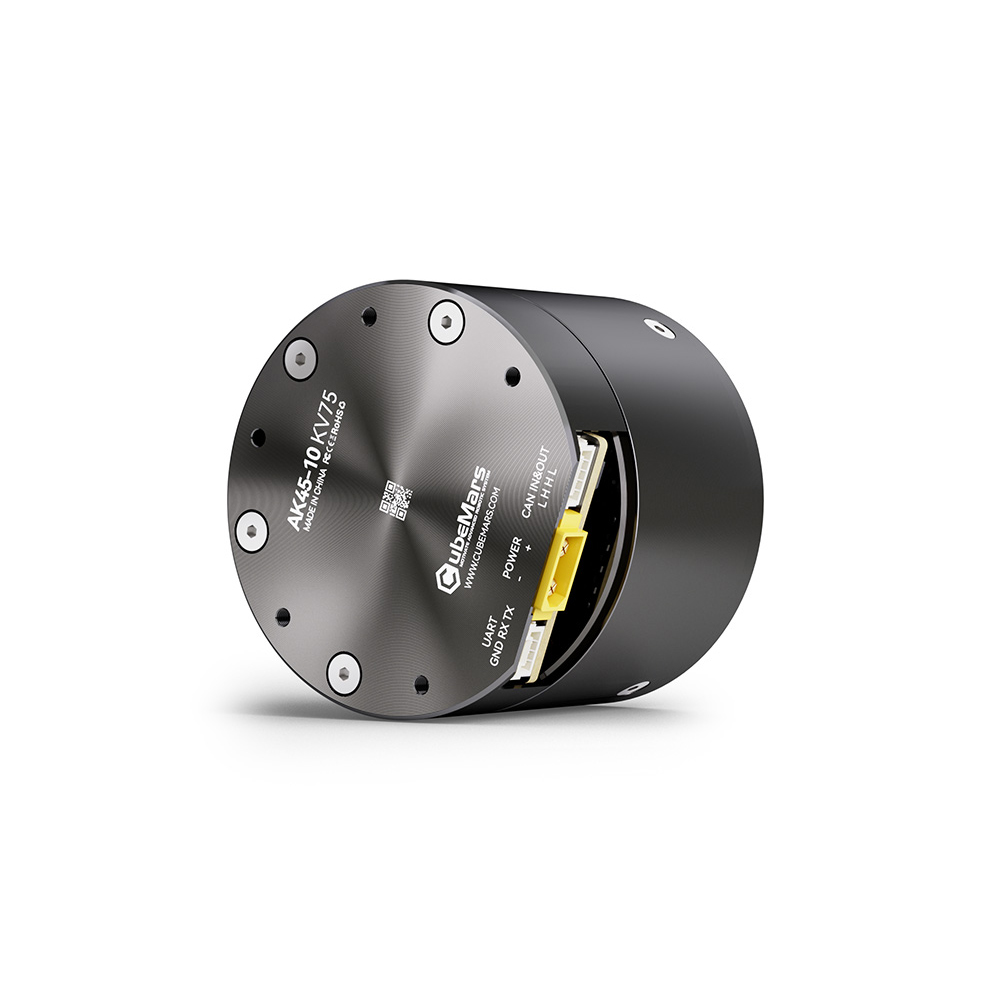

CubeMars AK45-10 75KV Brushless Motor Lightweight & High Power for Humanoid Robot Joints
The AK40-10, AK45-10, and AK45-36 series are high-performance power
modules that integrate a brushless motor, planetary gearbox, and
driver into a single unit, providing the perfect solution for
powerful motion and precise control. These modules feature a
lightweight design with high efficiency and strong power,
offering exceptional torque density to meet various high-load
demands. The core components of the gearbox and the manufacturing
process have been specially optimized to deliver a smoother
operating experience. Supporting both servo and motion control
modes, they incorporate adaptive PID settings, eliminating
complexity and enabling direct, efficient operation.
The AK40-10 and AK45-10 power modules use a 10:1 reduction ratio,
making them suitable for applications with limited space
and moderate torque requirements. In contrast, the AK45-36
power module features a 36:1 reduction ratio, delivering
greater torque output for heavy-load applications. The

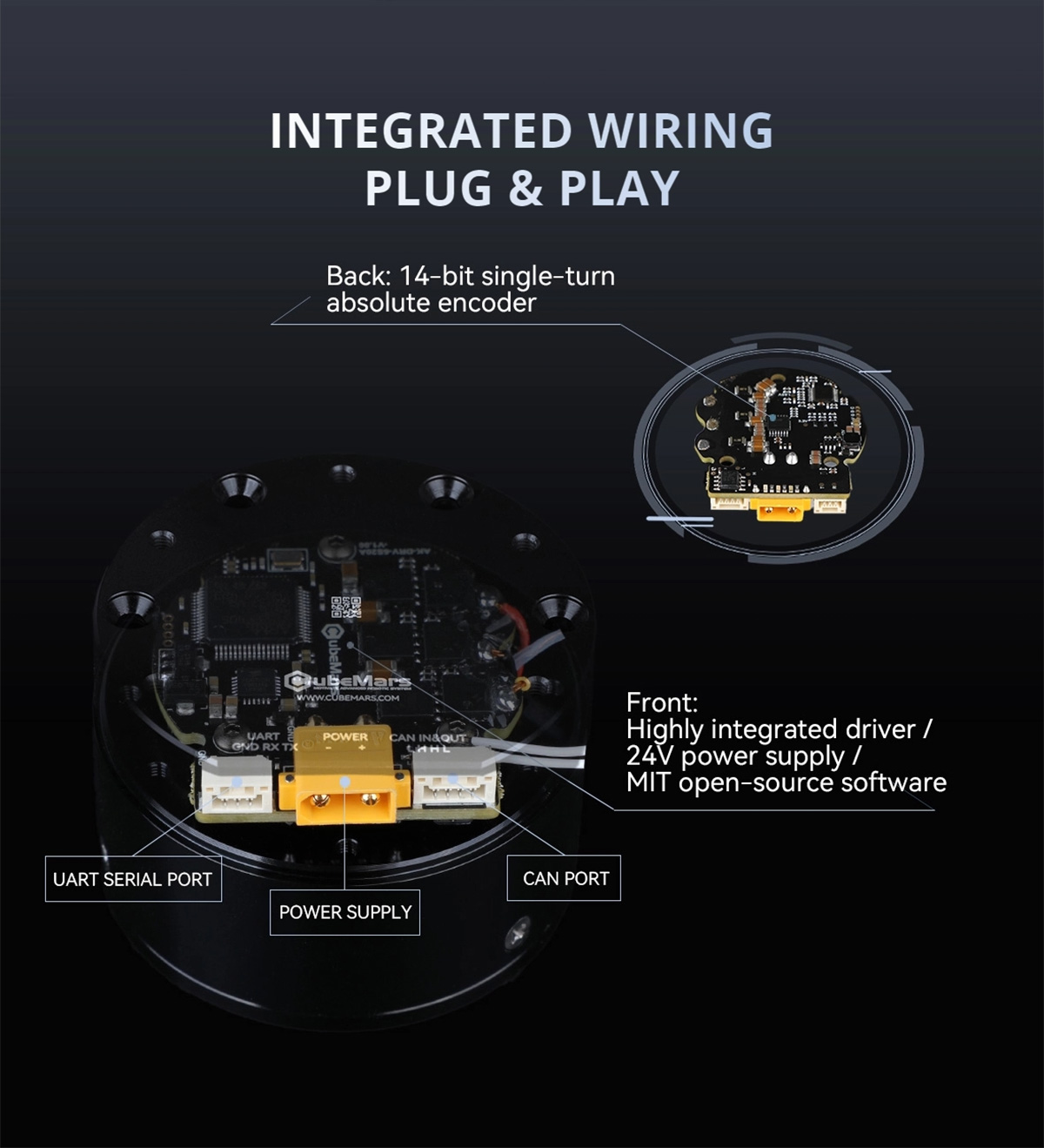

plug-and-play, highly integrated design removes traditional
redundant wiring, streamlining the installation process and
simplifying deployment.
More compact power module
Lightweight design with strong power
Supports both Servo and MIT
Plug & Play, simplifying complexity
Suitable for humanoid robot joints

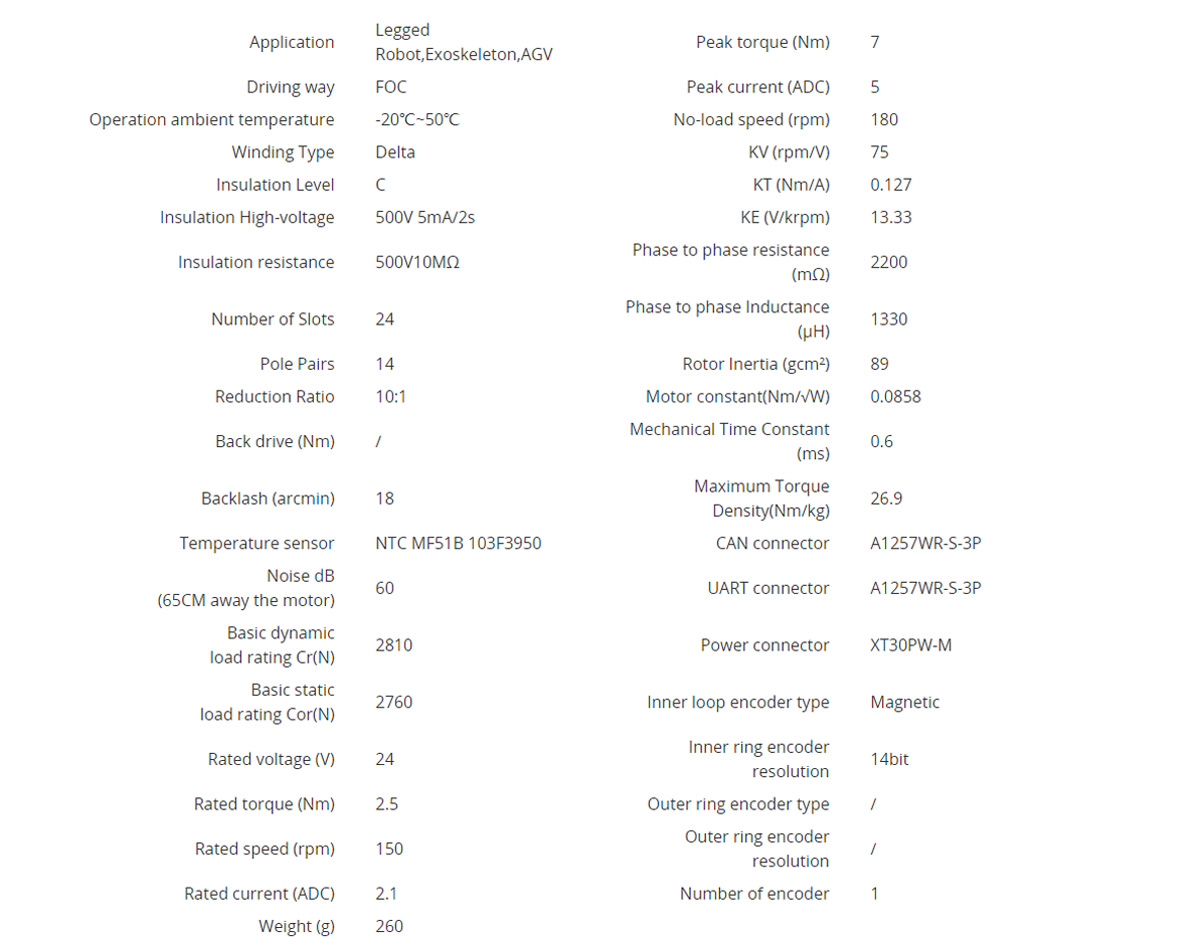

Product Details
Model: AK45-10 KV75
Application: Legged Robot, Exoskeleton, AGV
Peak torque (Nm): 7
Driving way: FOC
Peak current (ADC): 5
Operation ambient temperature: -20℃~50℃
No-load speed (rpm): 180
Winding Type: Delta
KV (rpm/V): 75
Insulation Level: C
KT (Nm/A): 0.127
Insulation High-voltage: 500V 5mA/2s
KE (V/krpm): 13.33
Insulation resistance: 500V10MΩ
Phase to phase resistance (mΩ): 2200
Number of Slots: 24
Phase to phase Inductance (μH): 1330
Pole Pairs: 14
Rotor Inertia (gcm²): 89
Reduction Ratio: 10:1
Motor constant(Nm/√W): 0.0858
Back drive (Nm): /
Mechanical Time Constant (ms): 0.6
Backlash (arcmin): 18
Maximum Torque Density(Nm/kg): 26.9
Temperature sensor: NTC MF51B 103F3950
CAN connector: A1257WR-S-3P
Noise dB (65CM away the motor): 60
UART connector: A1257WR-S-3P
Basic dynamic load rating Cr(N): 2810
Power connector: XT30PW-M
Basic static load rating Cor(N): 2760
Inner loop encoder type: Magnetic
Rated voltage (V): 24
Inner ring encoder resolution: 14bit
Rated torque (Nm): 2.5
Outer ring encoder type: /
Rated speed (rpm): 150
Outer ring encoder resolution: /
Rated current (ADC): 2.1
Number of encoder: 1
Weight (g): 260
Write Review
100 Units in Stock
Ask a Question
$189.99
