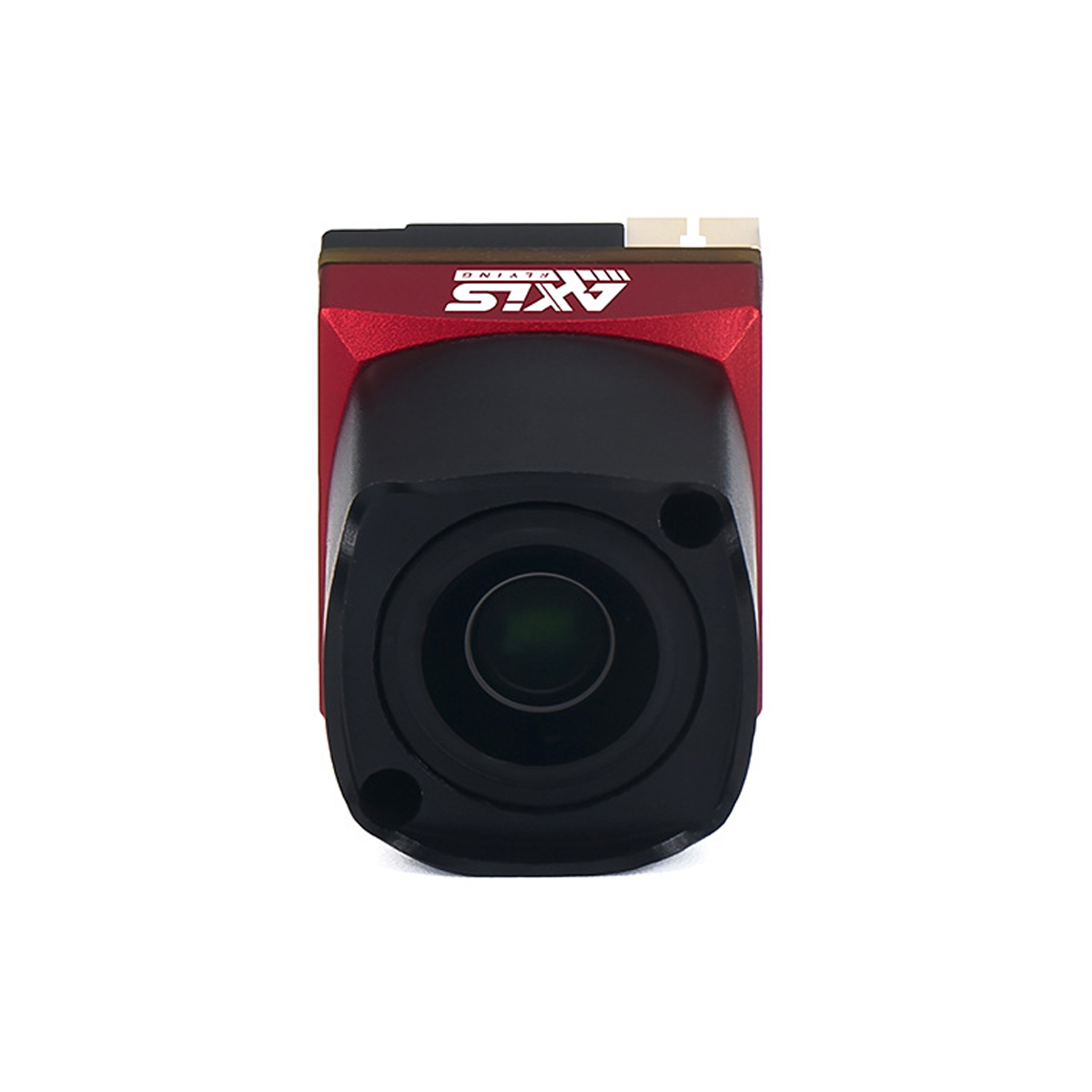

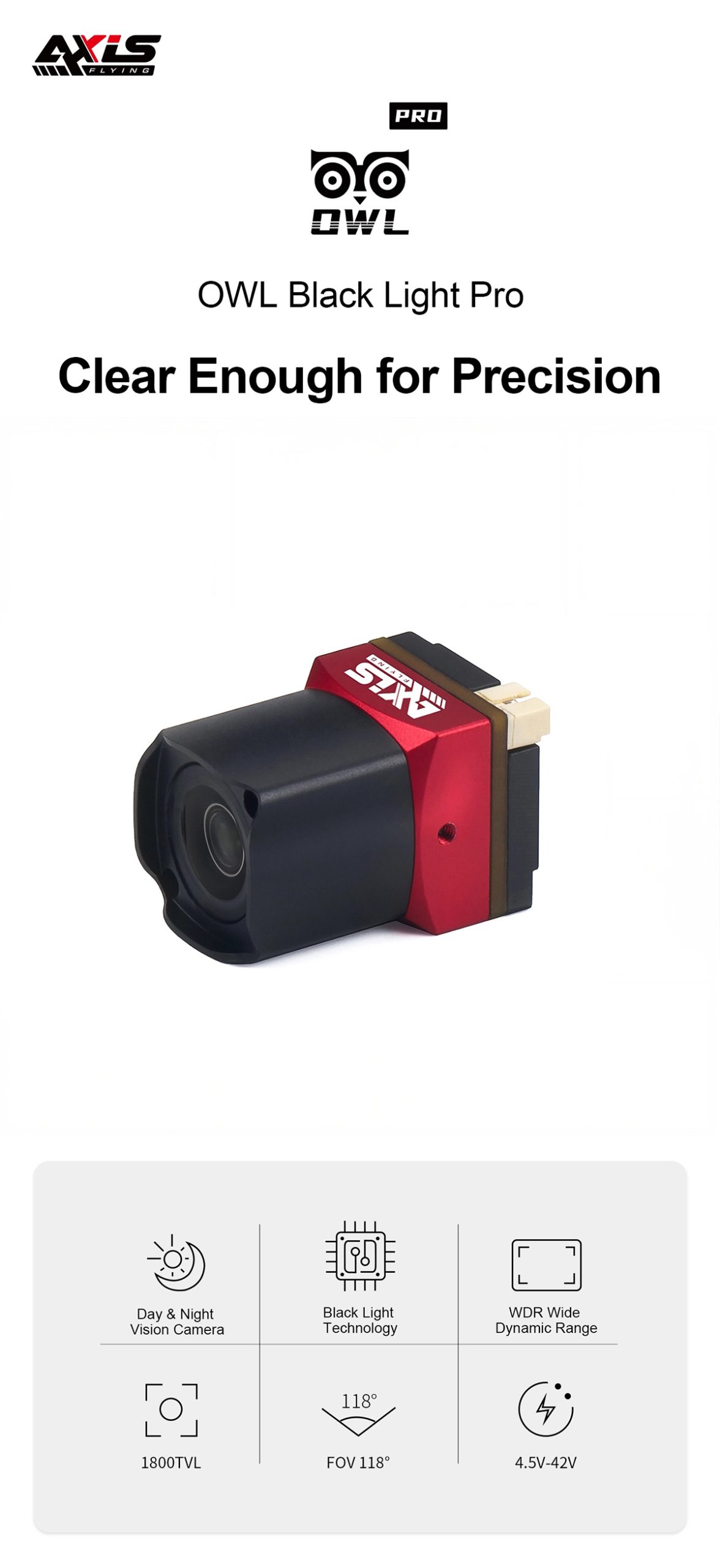

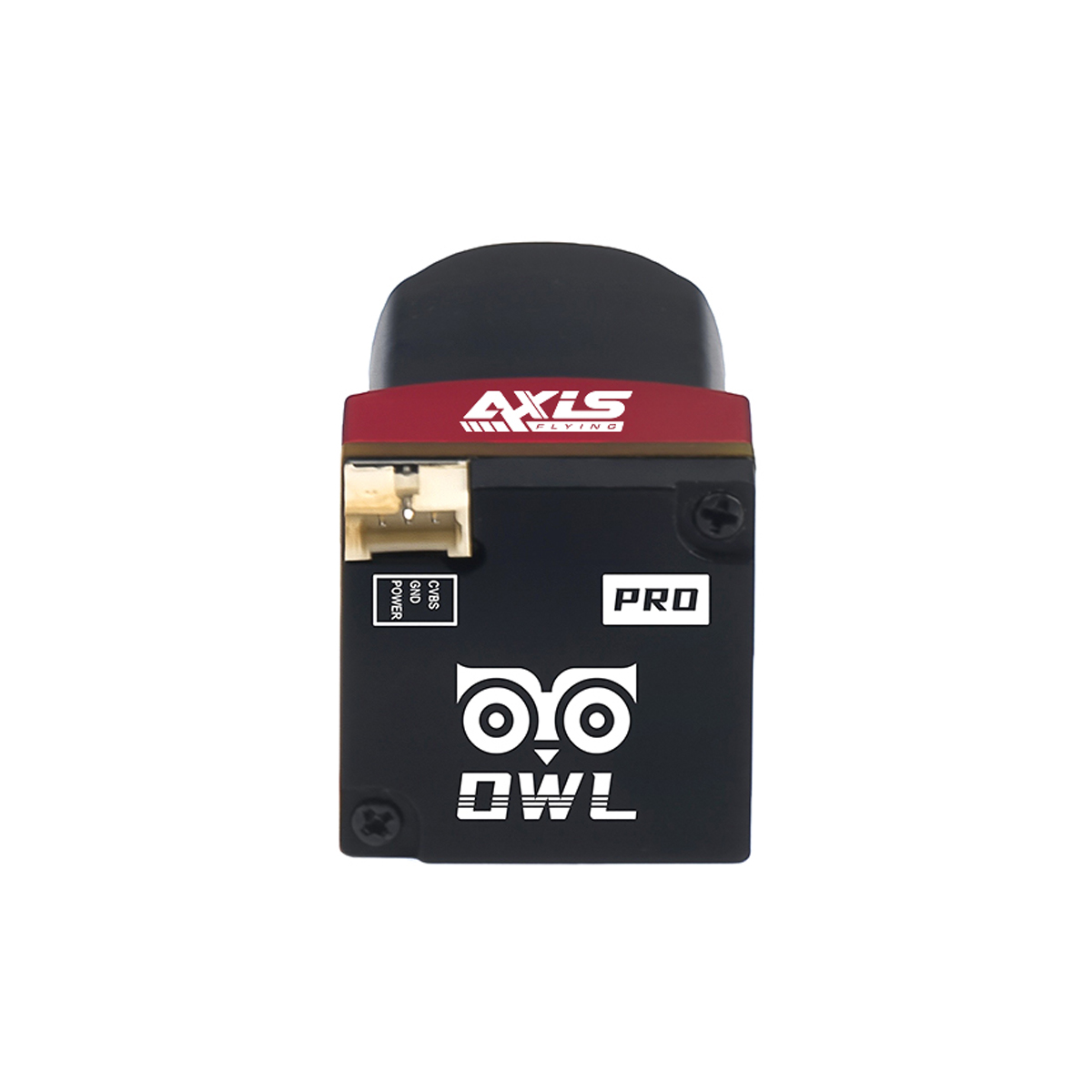

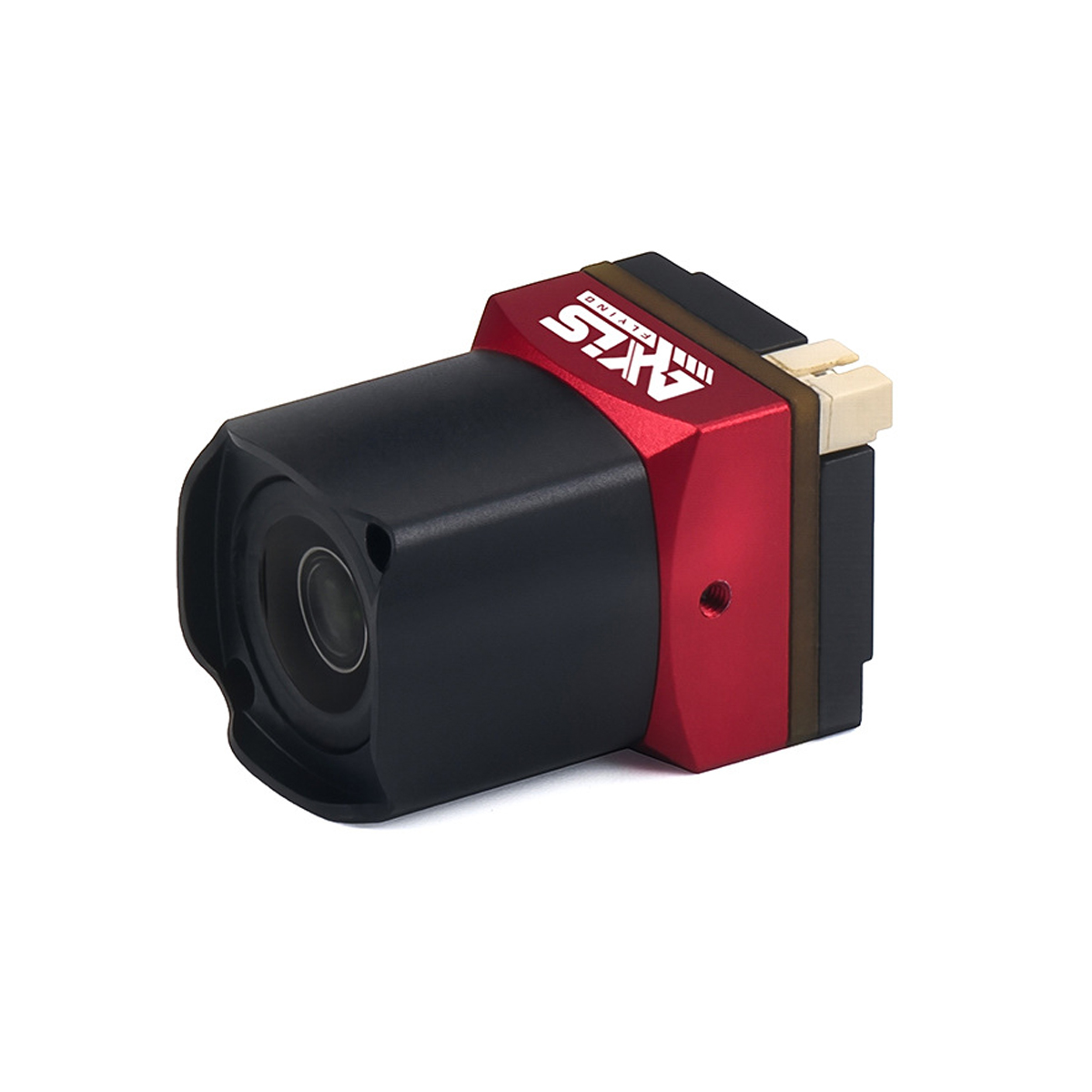

Axisflying 1800TVL HD OWL Pro Black Light Camera 1080P/60fps CVB
Axisflying 1800TVL HD OWL Pro Black Light Camera 1080P/60fps CVB
Axisflying 1800TVL HD OWL Pro Black Light Camera 1080P/60fps CVB
×
larger image
Features
Axisflying 1800TVL HD OWL Pro Black Light Camera 1080P/
60fps CVBS High Resolution for FPV Racing Drone

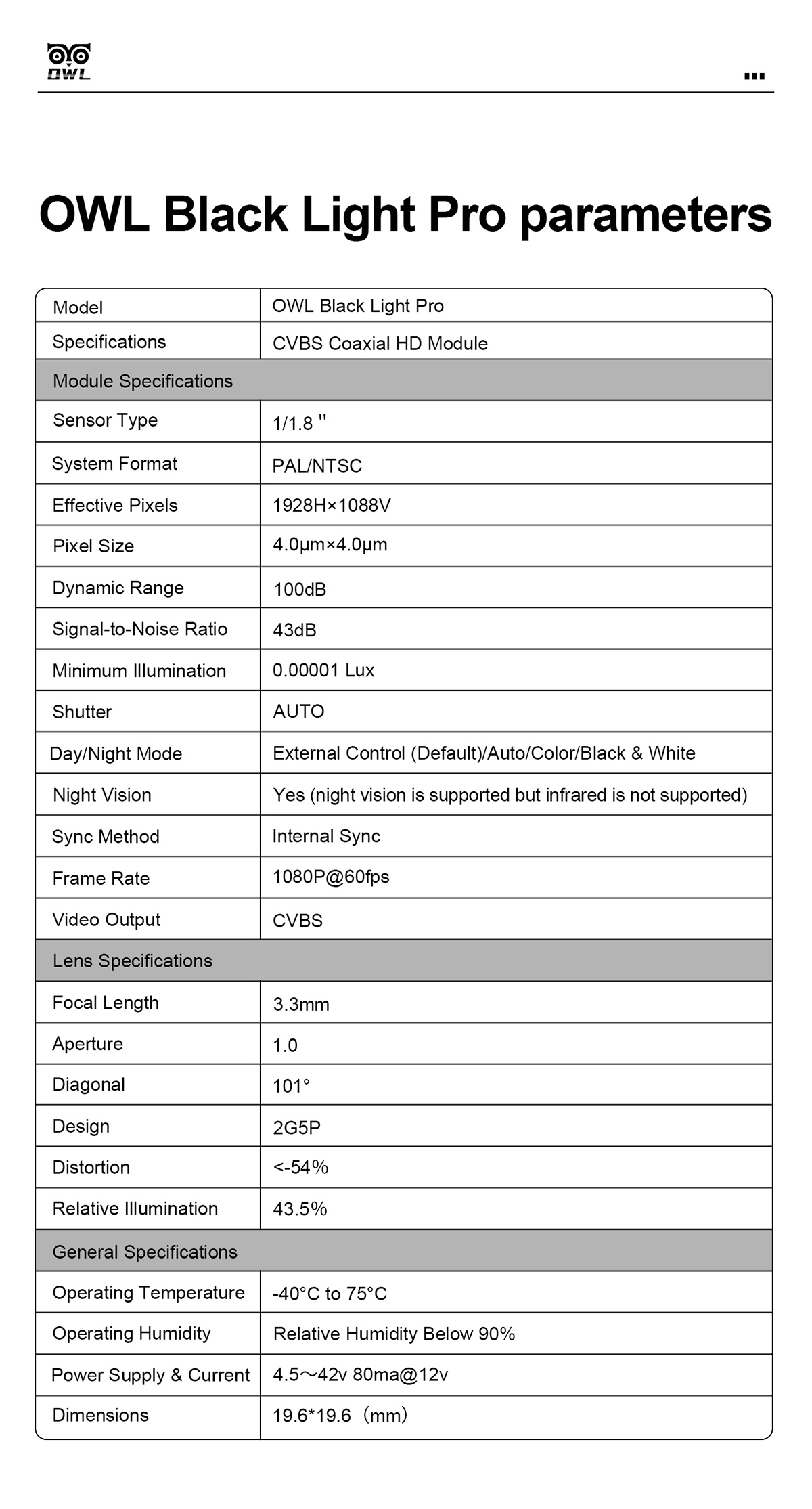

Product Details
Model: OWL Black Light Pro
Type: CVBS Coaxial HD Module
Module Specifications
Sensor Type: 1/1.8″
System Format: PAL/NTSC
Effective Pixels: 1928H×1088V
Pixel Size: 4.0µm×4.0µm
Dynamic Range: 100dB
Signal-to-Noise Ratio: 43dB
Minimum Illumination: 0.00001 Lux
Shutter: AUTO
Day/Night Mode: External Control (Default)/Auto/Color/Black & White
Night Vision: Yes (night vision is supported but infrared is not supported)
Sync Method: Internal Sync
Frame Rate: 1080P@60fps
Video Output: CVBS
Lens Specifications
Focal Length: 3.3mm
Aperture: 1.0
Diagonal: 101°
Design: 2G5P
Distortion: <-54%
Relative Illumination: 43.5%
General Specifications
Operating Temperature: -40℃ to 75℃
Operating Humidity: Relative Humidity Below 90%
Power Supply & Current: 4.5~42V, 80mA@12V

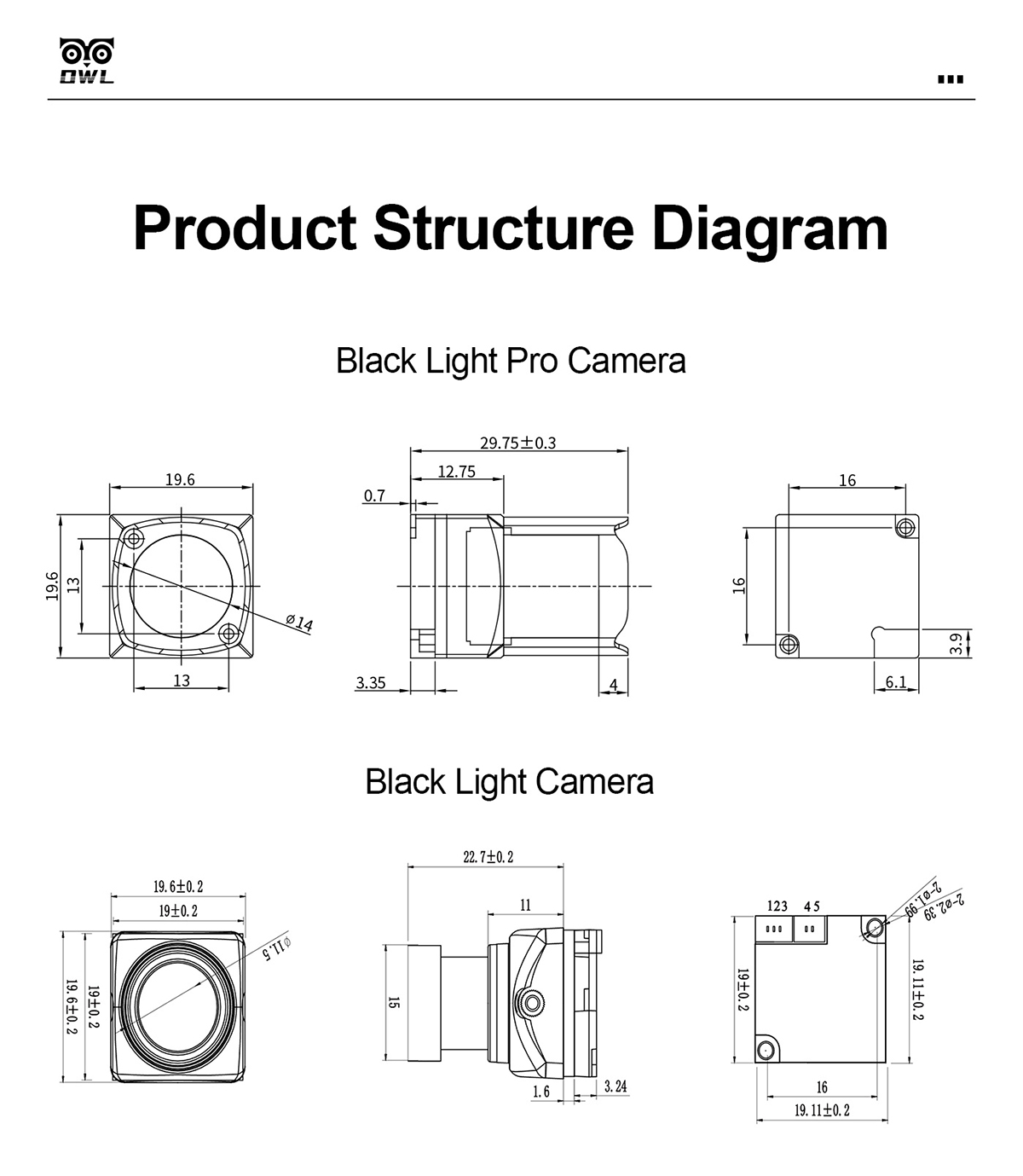

Dimensions: 19.6*19.6 (mm)
Write Review
100 Units in Stock
Ask a Question
$85.00
